3-83
Confidential
(5) Release the wiring of the Power cord.
(6) Disconnect the Power supply harness from the Power supply PCB ASSY.
(7) Remove the three screws (TAPTITE CUP S M3x6) and take the Power supply
PCB ASSY out of the Lower power supply frame.

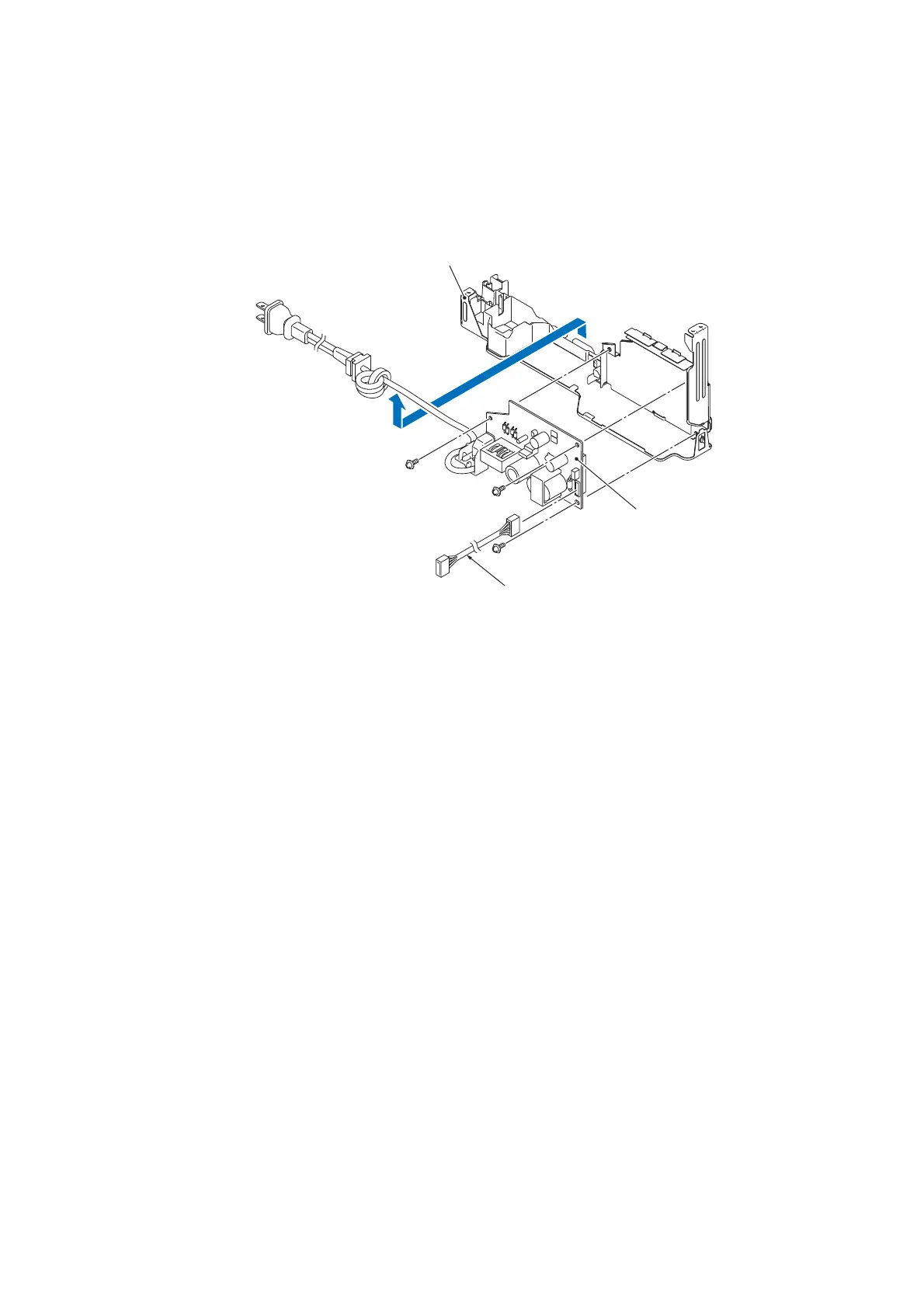

Fig. 3-89
Lower power supply frame
Power supply PCB
ASSY
Power supply harness
TAPTITE CUP S M3x6
