Brother MFC-J2320 Service Manual

3-25
Confidential
[ 3 ] Disconnecting Cables, Removing Accessories, and Setting the Protective Part
Before starting disassembly, perform the following procedure.
(1) Disconnect the following:
- Telephone line cord, if connected
- USB cable, if connected
- LAN cable, if connected
- External memory card, if connected
(2) Remove the following:
- Paper tray ASSY 1 / 2
- Ink cartridge
- LAN port cap
-EXT cap

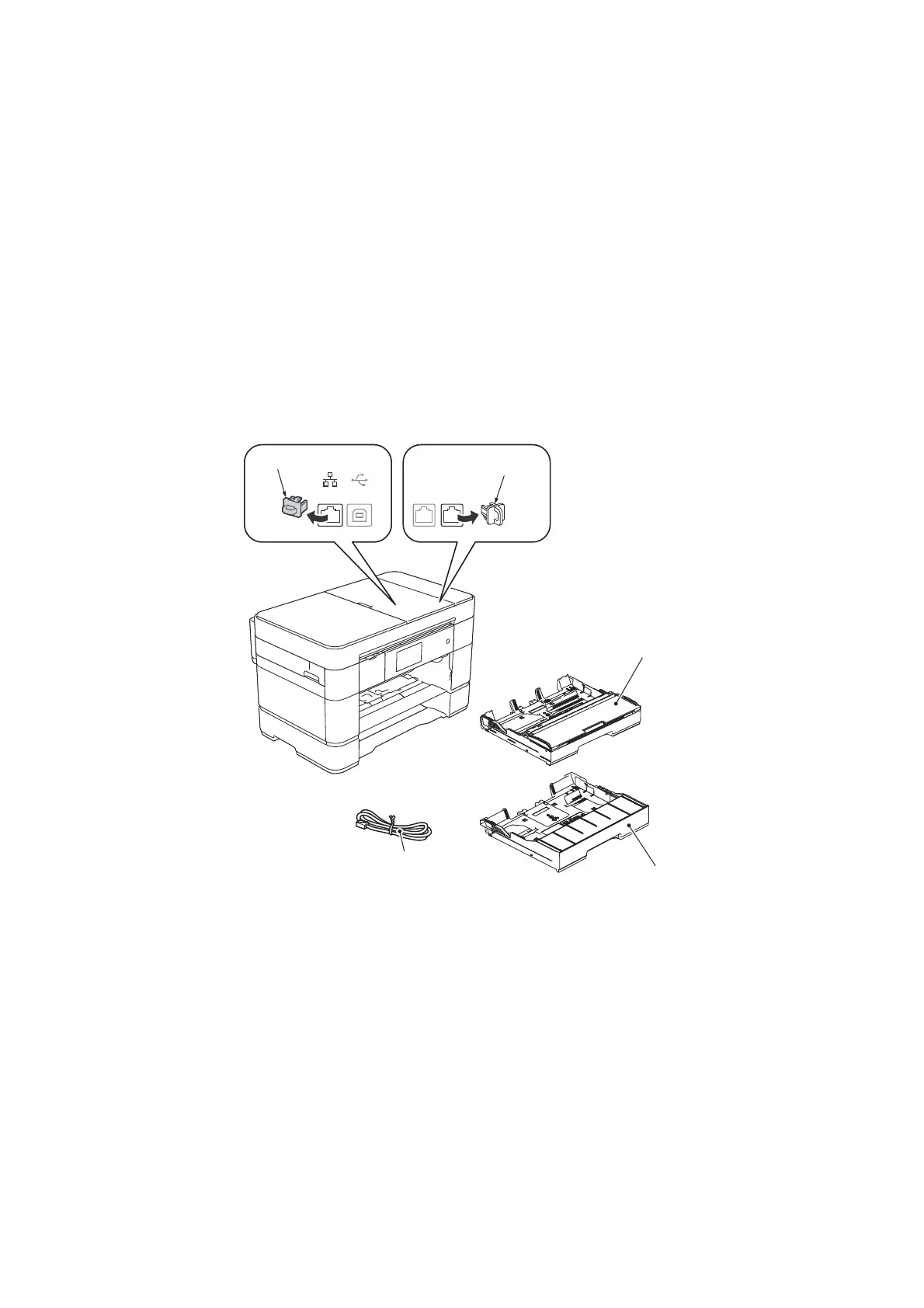

Fig. 3-1
/$1
(;7/,1(
86%
Telephone line cord
Paper tray ASSY 1
EXT cap
LAN port cap
Paper tray ASSY 2

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
