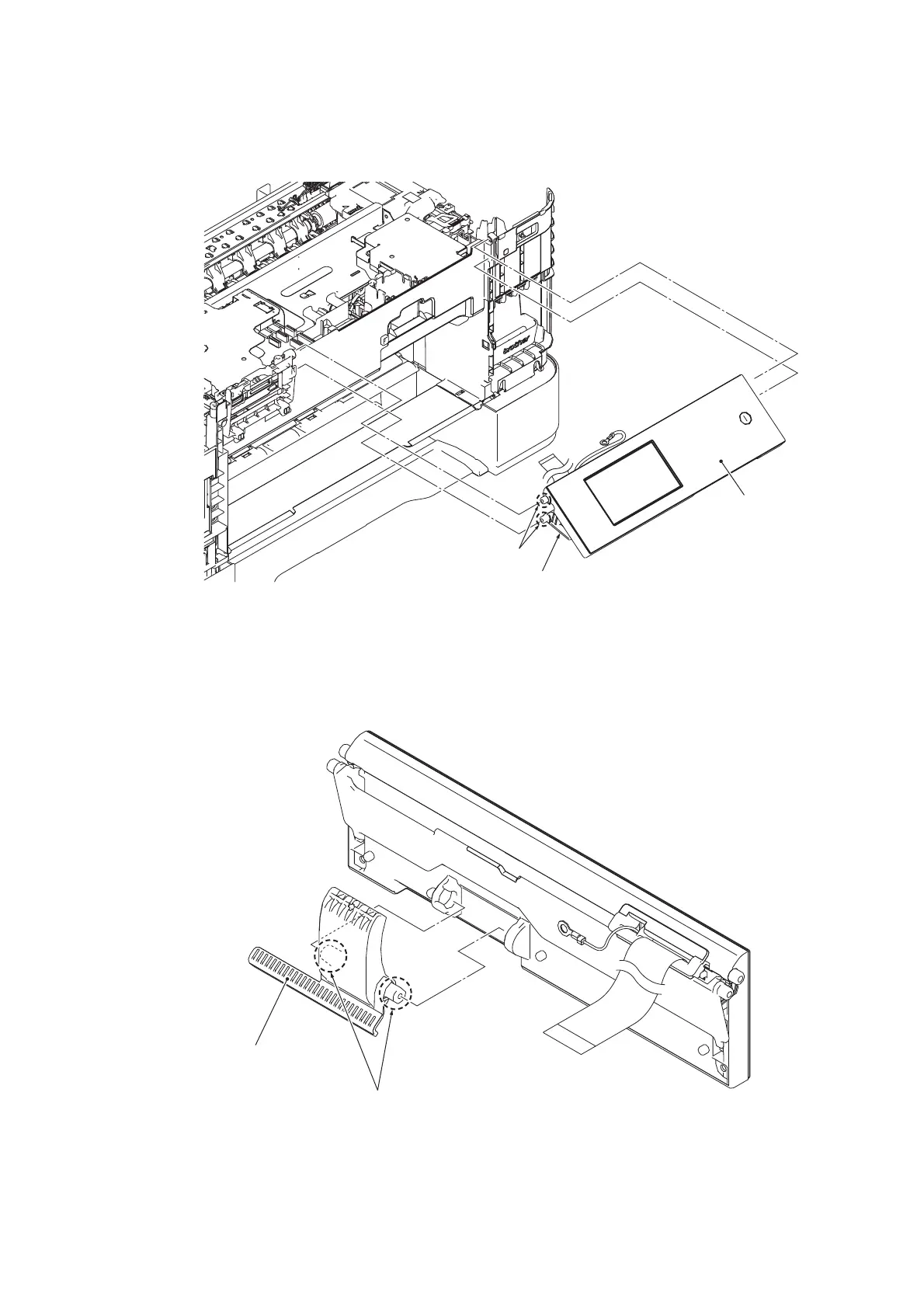

(5) Release the upper left Boss on the Control panel ASSY and the left-side Boss on
the FFC guard cover, then remove the Control panel ASSY.
Fig. 3-53
(6) Release the two Bosses of the Tilt hook, and remove the Tilt hook.
Fig. 3-54
Control panel
ASSY
FFC guard cover
Bosses
Tilt hook
Bosses
