Brother MFC-J2320 Service Manual

3-67
Confidential
(4) Release the five Hooks marked with ▲ on the Head cover to remove it.
Note: When removing the Head cover, do not touch the Inclination adjuster ring.

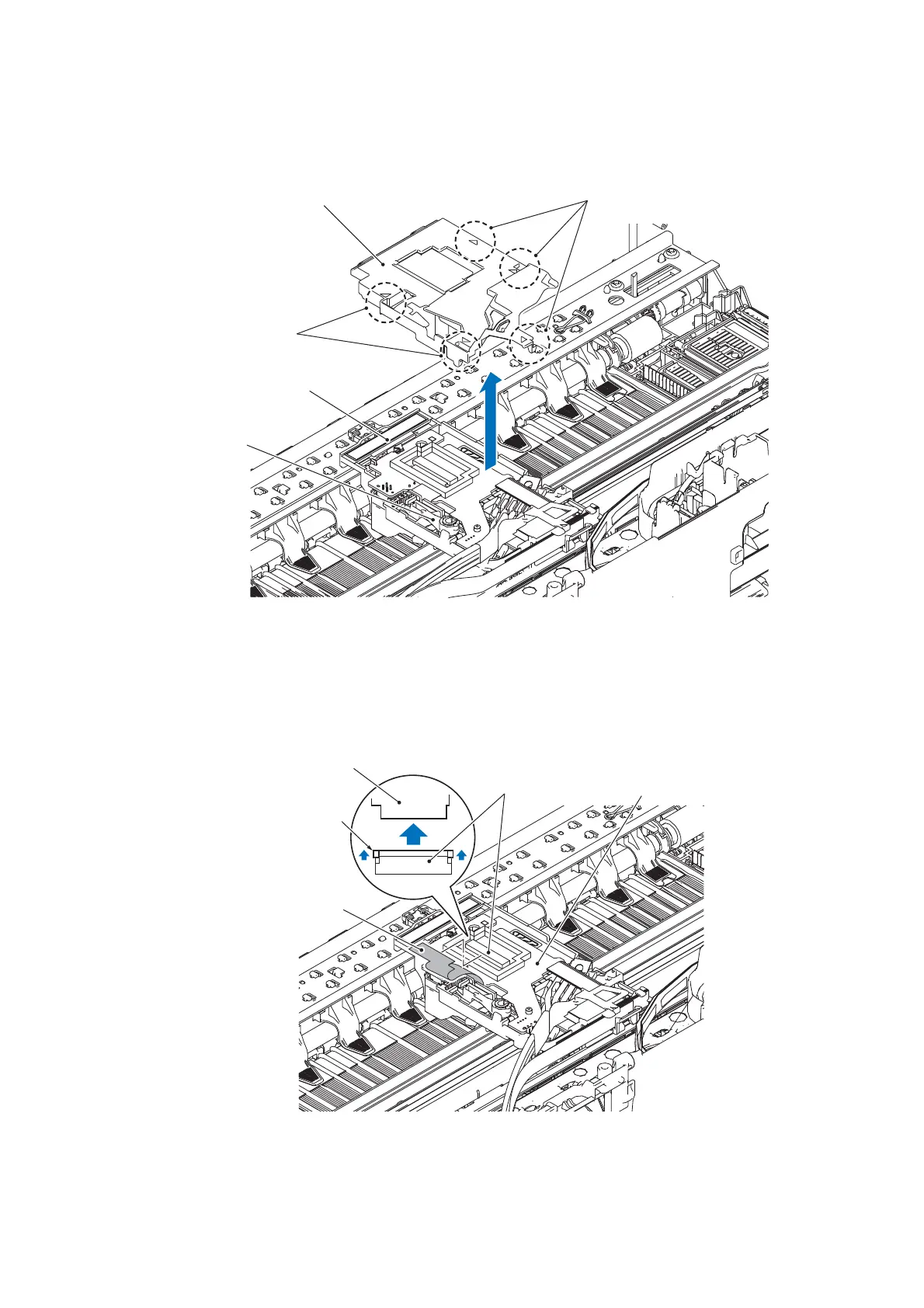

Fig. 3-64
(5) Unlock the Connector on the Carriage PCB ASSY and disconnect the Head flat
cable.
Fig. 3-65
Head cover
Hooks
Hooks
Head/carriage
unit
Inclination
adjuster ring
Carriage PCB ASSY
Connector
Pull here to unlock
Head flat
cable
Head flat
cable
