Brother MFC-J2320 Service Manual

3-73
Confidential

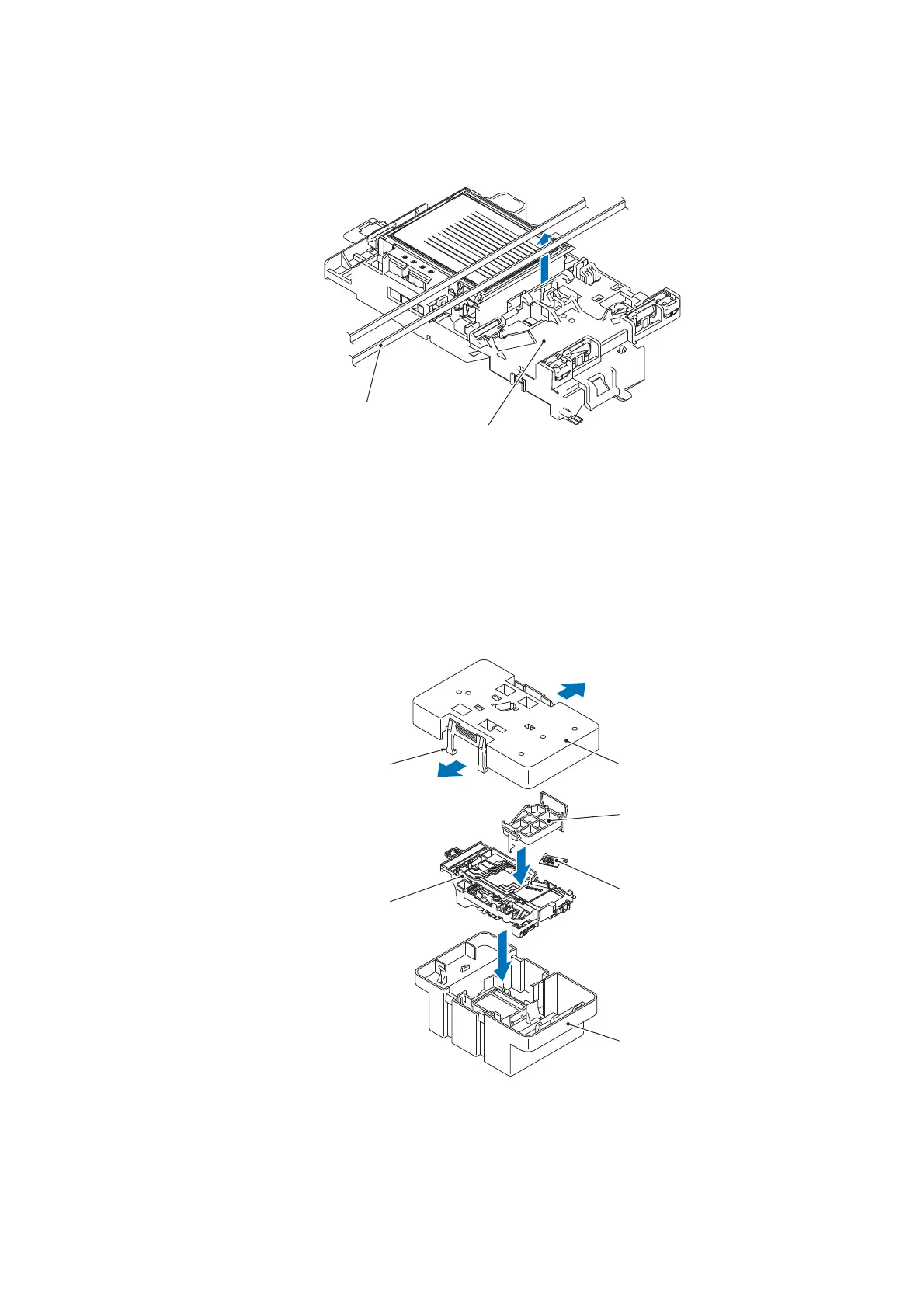

(6) Remove the CR timing belt from the Head/carriage unit.
Fig. 3-74
Note: When storing the removed Head/carriage unit for a long period, store the unit in
a Head casing as shown below. Leaving it out of the casing causes the head nozzles
and ink supply ports to dry up so that the Head/carriage unit can no longer provide the
original performance.
Fig. 3-75
CR timing belt
Head/carriage
unit
Latch
Head casing (lower)
Head joint rubber
Joint cap
Head casing (upper)
Head/carriage unit

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
