3-78
Confidential
(9) Remove two screws (TAPTITE CUP B M3x10) and remove the Lower tray frame.

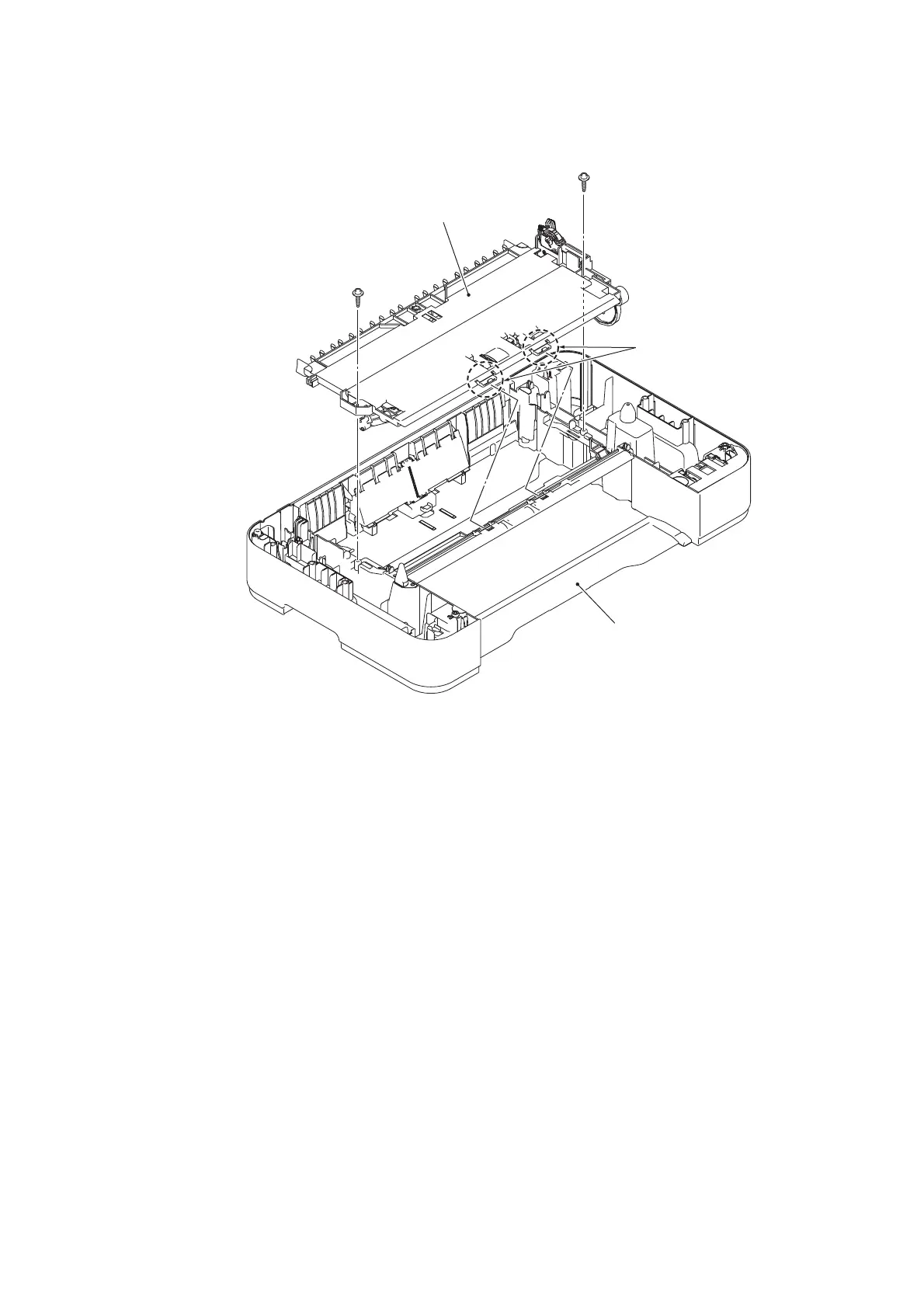

Fig. 3-81
Assembling Note: When mounting the Lower tray frame, hang the two Tongues onto
the holes on the Lower tray unit.
TAPTITE CUP B M3x10
Lower tray frame
Lower tray unit
Tongues
