3-92
Confidential
(3) Remove the Switchback roller belt.
(4) Remove the Switchback roller.
Assembling Note
• Do not touch the Platen foam by hand.
• Mount the Switchback roller with its Bushing lever upward.
(5) Remove the Switchback outer paper guide from the Switchback roller.

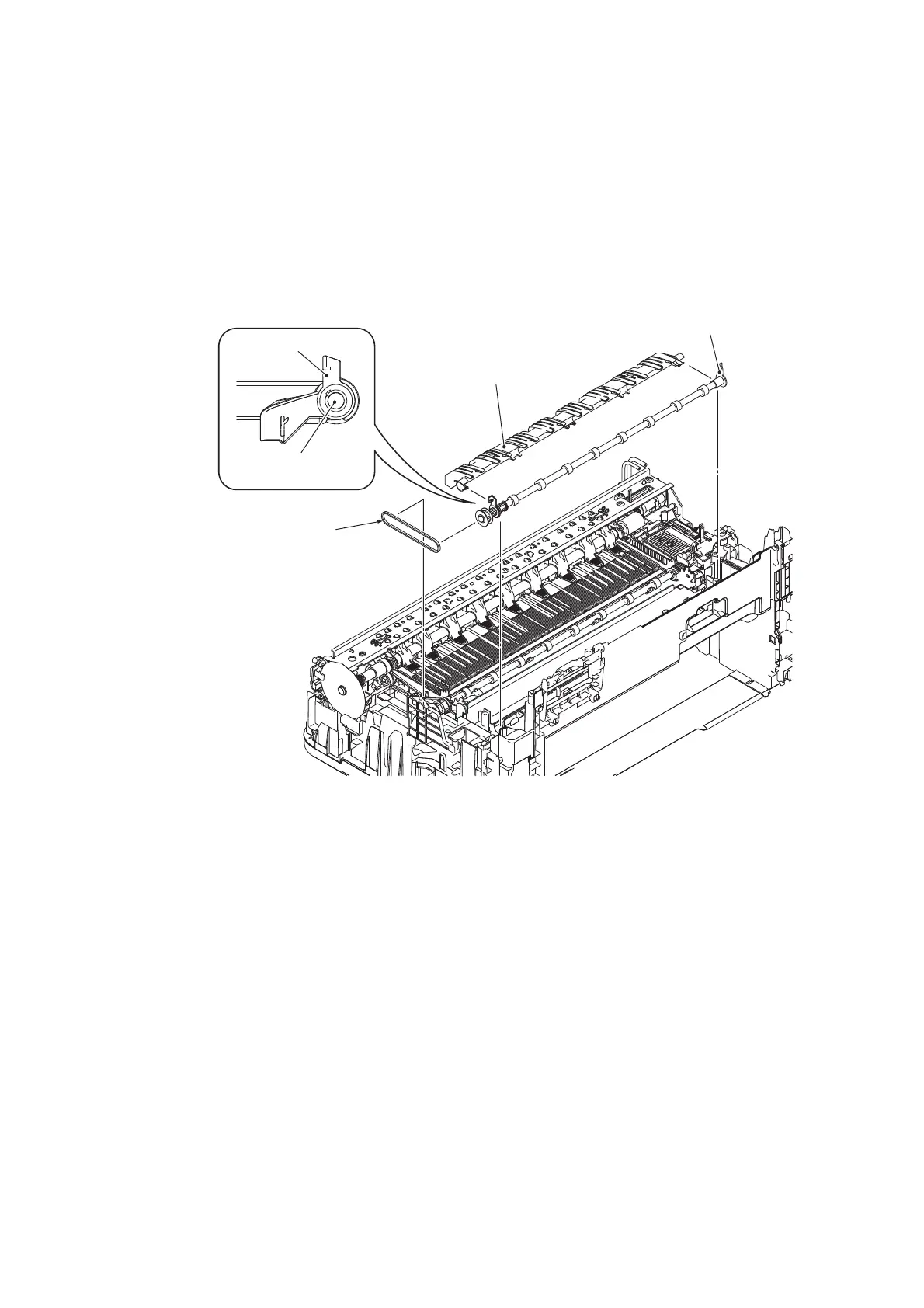

Fig. 3-102
Bushing lever
Switchback
roller
Switchback
roller belt
Switchback outer
paper guide
Switchback roller
