Brother MFC-J2320 Service Manual

3-106
Confidential

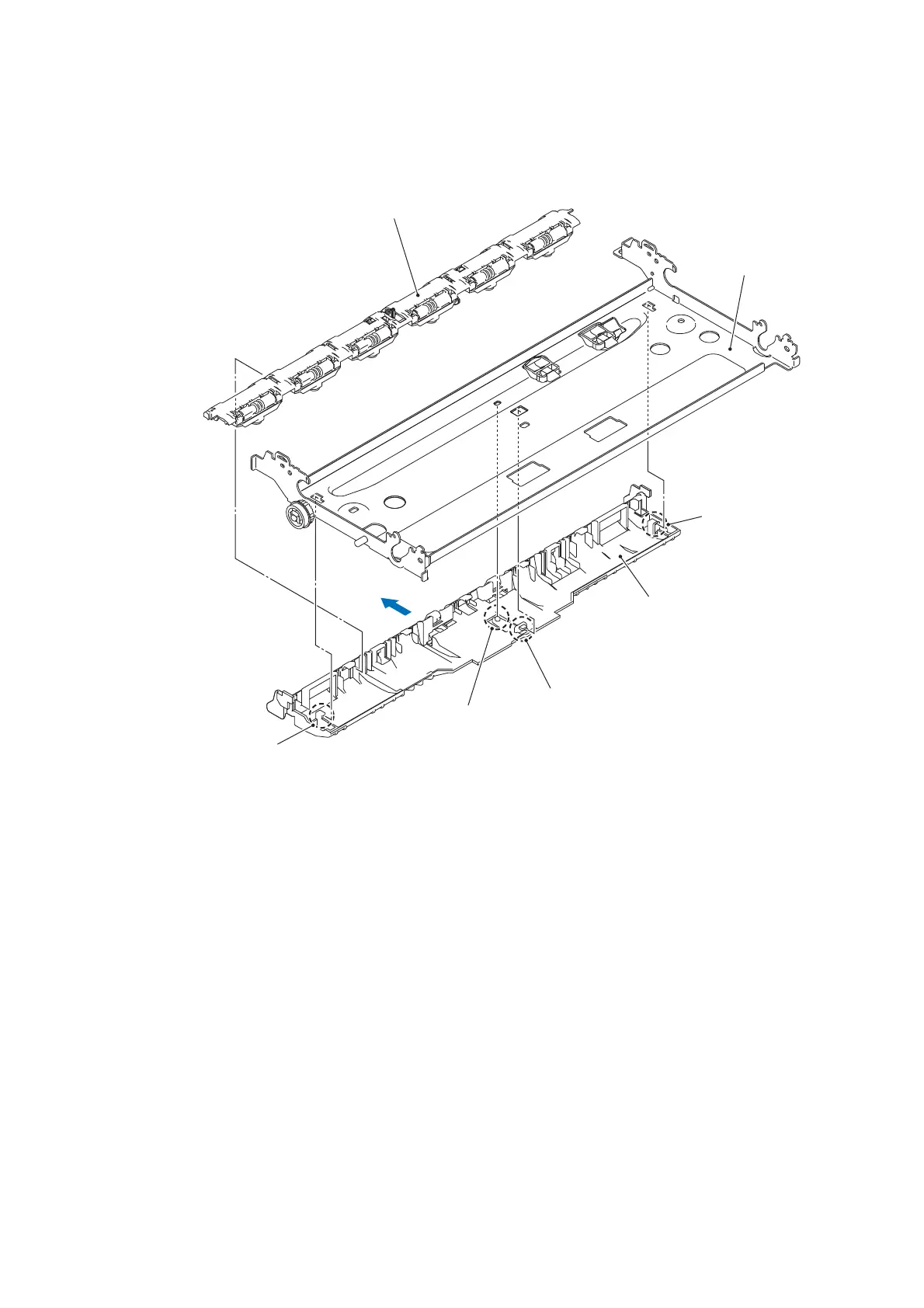

(4) Release the Hooks and the Boss on the DX paper guide ASSY, slide it in the
direction of the arrow, and remove the DX paper guide ASSY and the Inner chute
ASSY from the Frame base.
Fig. 3-122
Assembling Note: After mounting the Inner chute ASSY and the DX paper guide
ASSY to the Frame base, confirm that the Registration actuator operates normally.
Inner chute ASSY
Frame base
Hook
DX paper guide ASSY
Hook
Boss
Hook

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
