Brother MFC-J2320 Service Manual

5-25
Confidential
*1 Duplex scanning models only
*2 Paper tray 2 models only
*3 MP tray models only
(3) Change the detecting conditions (e.g., insert paper through the registration sensor,
open the ink cartridge cover or document scanner, or remove the ink cartridges),
and then check that the indication on the LCD changes according to the sensor
states.
(4) Press the X key to stop this operation and return the machine to the initial stage of
the maintenance mode.

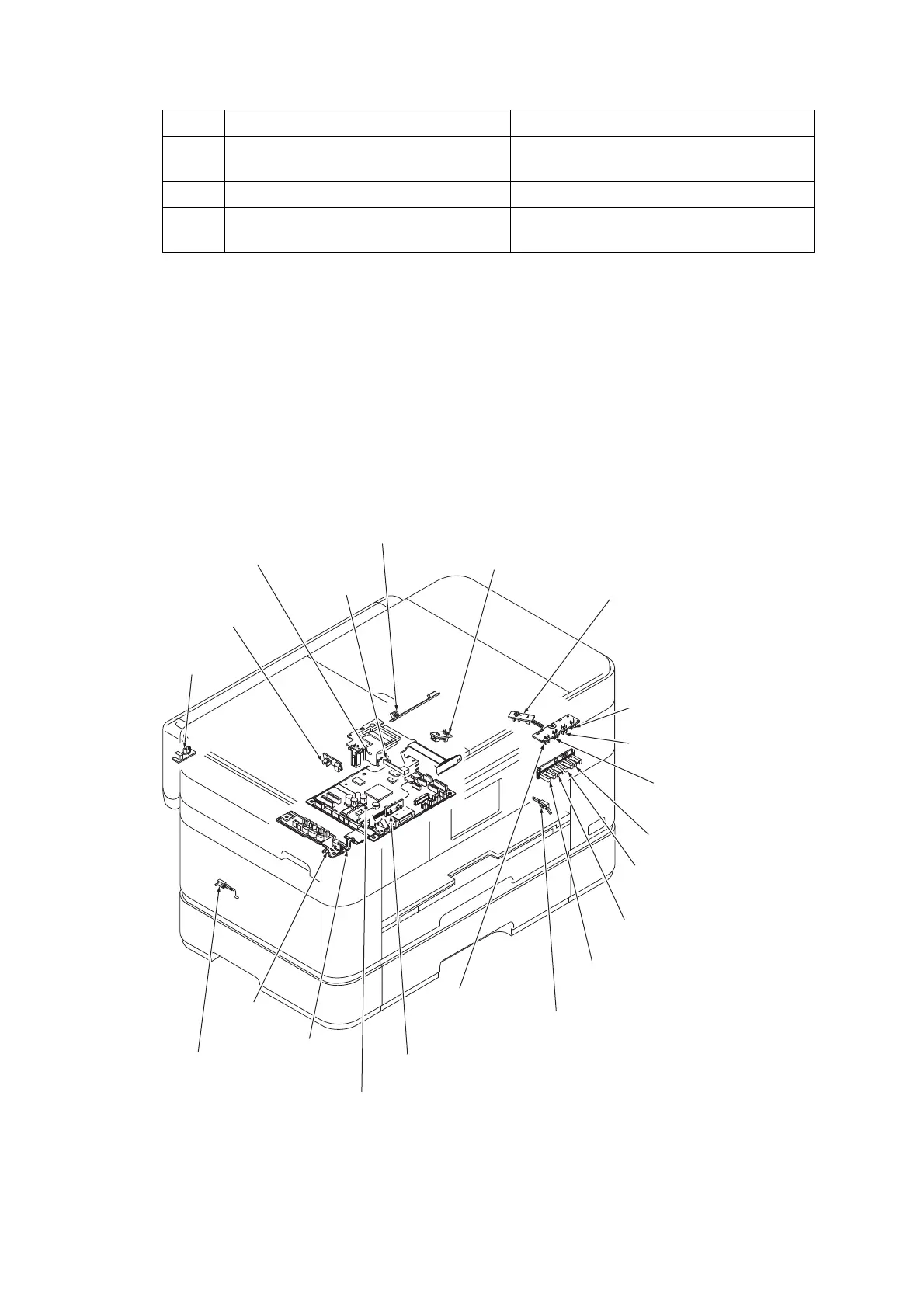

Locations of Sensors
Fig. 5-1
LCD Sensors Sensing status (display/no display)
RB
*1
Second side document scanning
position sensor
No document/Document present
VT Head thermistor Normal temperature/Abnormal temperature
T1 High temperature detector in the
complex IC (for main PCB)
Normal temperature/Abnormal temperature
Registration sensor
Purge cam sensor
Document
detection sensor
Head thermistor
MP paper
detection sensor
Paper tray 2
detection sensor
Document
scanner
sensor
High temperature detector in the complex IC
(for main PCB)
Ink cartridge cover
sensor
Switchback sensor
Magenta ink
cartridge detection
sensor
Magenta ink
remaining sensor
Cyan ink
remaining sensor
Yellow ink
remaining sensor
Black ink
remaining sensor
Cyan ink cartridge
detection sensor
Yellow ink cartridge
detection sensor
Black ink cartridge
detection sensor
Second side document
scanning position sensor
First side document
scanning position
sensor
ADF cover
sensor

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
