Confidential
2-46

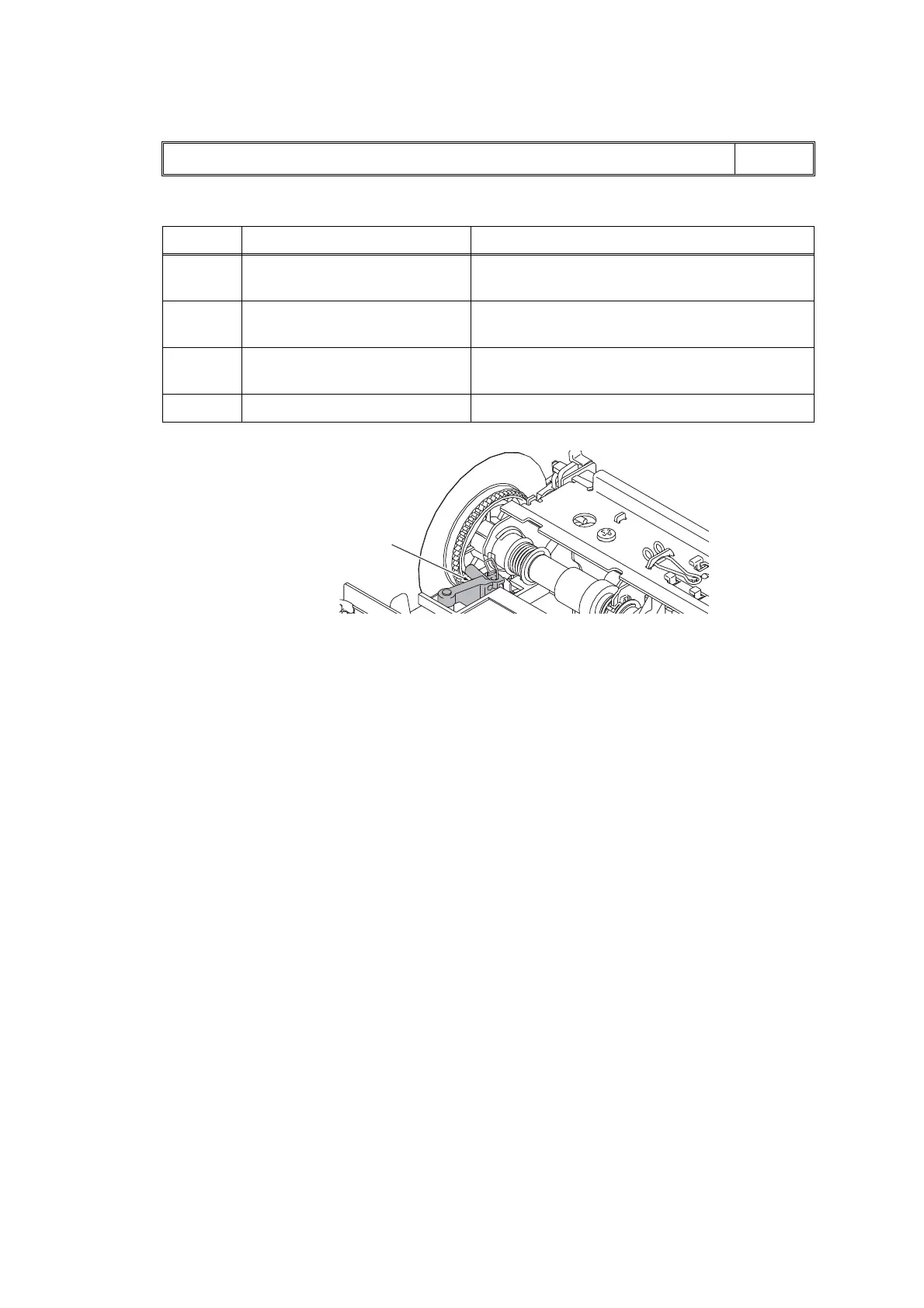

Paper width sensor cannot detect origin specified on the paper feed roller.
Fig. 2-7
Error Code 89
Unable to Print 89
LCD
Step Cause Solution
1 PF encoder disk stained Clean the PF encoder disk and flushing guide
(refer to Chapter 3, Section 1.)
2 PF home position detection
lever out of place
Set the PF home position detection lever into
place.
3 Paper width sensor or carriage
PCB defective
Replace the carriage PCB ASSY.
4 Main PCB defective Replace the main PCB ASSY.
PF home position detection lever
