Confidential
2-64

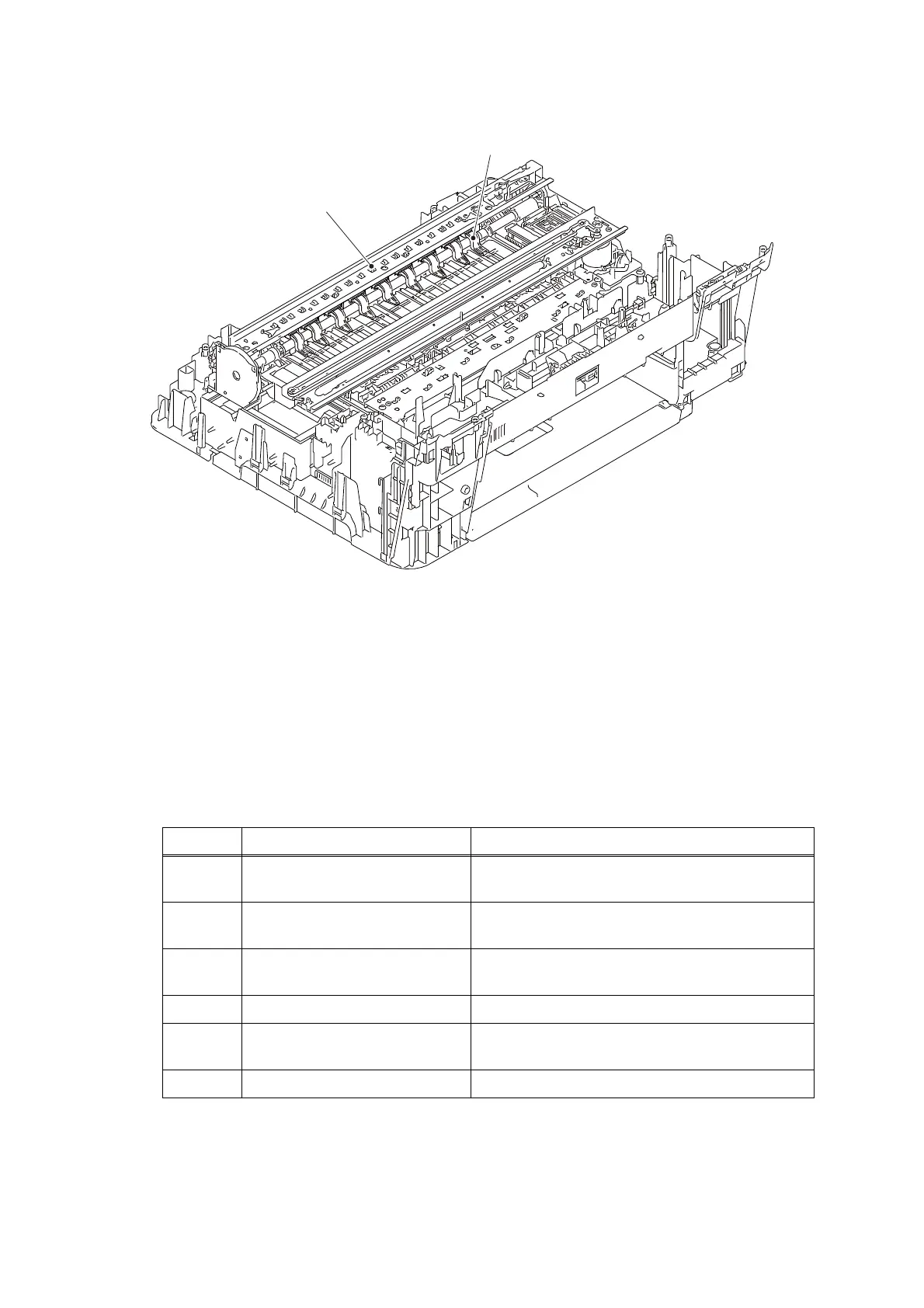

Fig. 2-9
â– Paper jam around paper ejection parts
< User Check >
- Clean the related rollers.
- Check that the number of recording paper on the output paper tray is within the
maximum ejecting paper volume.
- Check that the output paper tray is pulled out in accordance with the recording paper
size.
Step Cause Solution
1 Foreign materials in the
recording paper path
Remove foreign materials.
2 Switchback inner paper guide
not mounted in place
Set the switchback inner paper guide into place.
3 Switchback outer paper guide
not mounted in place
Set the switchback outer paper guide into place.
4 Switchback sensor defective Replace the switchback sensor PCB.
5 Paper ejection roller belt out of
place
Set the paper ejection roller belt into place.
6 Main PCB defective Replace the main PCB.
Corrugate plate
CR guide rail
To Next Page
