Brother MFC-J6535DW Service Manual

3-79
Confidential

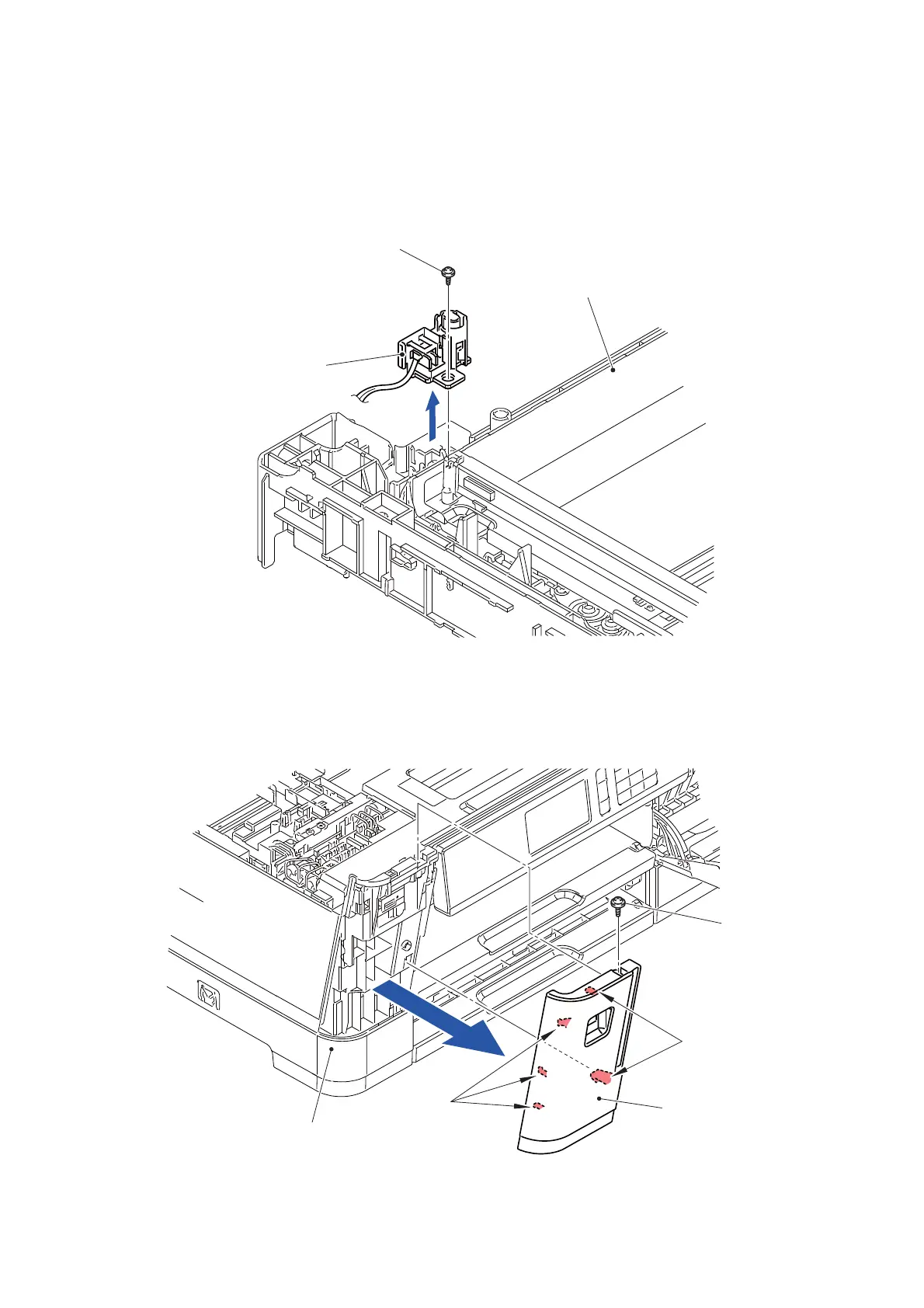

9.23 Document Cover Sensor
(1) Release the wiring of the Document MP sensor harness unit.
(2) Remove the screw (TAPTITE CUP B M3x10) and remove the Document cover sensor
from the Scanner base.
Fig. 3-79
9.24 Front Cover L
(1) Remove the screw (TAPTITE BIND B M4x12).
(2) Release the five Hooks and remove the Front cover L from the Lower cover.
Fig. 3-80
TAPTITE CUP B M3x10
Document cover sensor
Scanner base
TAPTITE
Lower cover
Front cover L
BIND B
M4x12
Hooks
Hooks
