Brother MFC-J6535DW Service Manual

3-65
Confidential

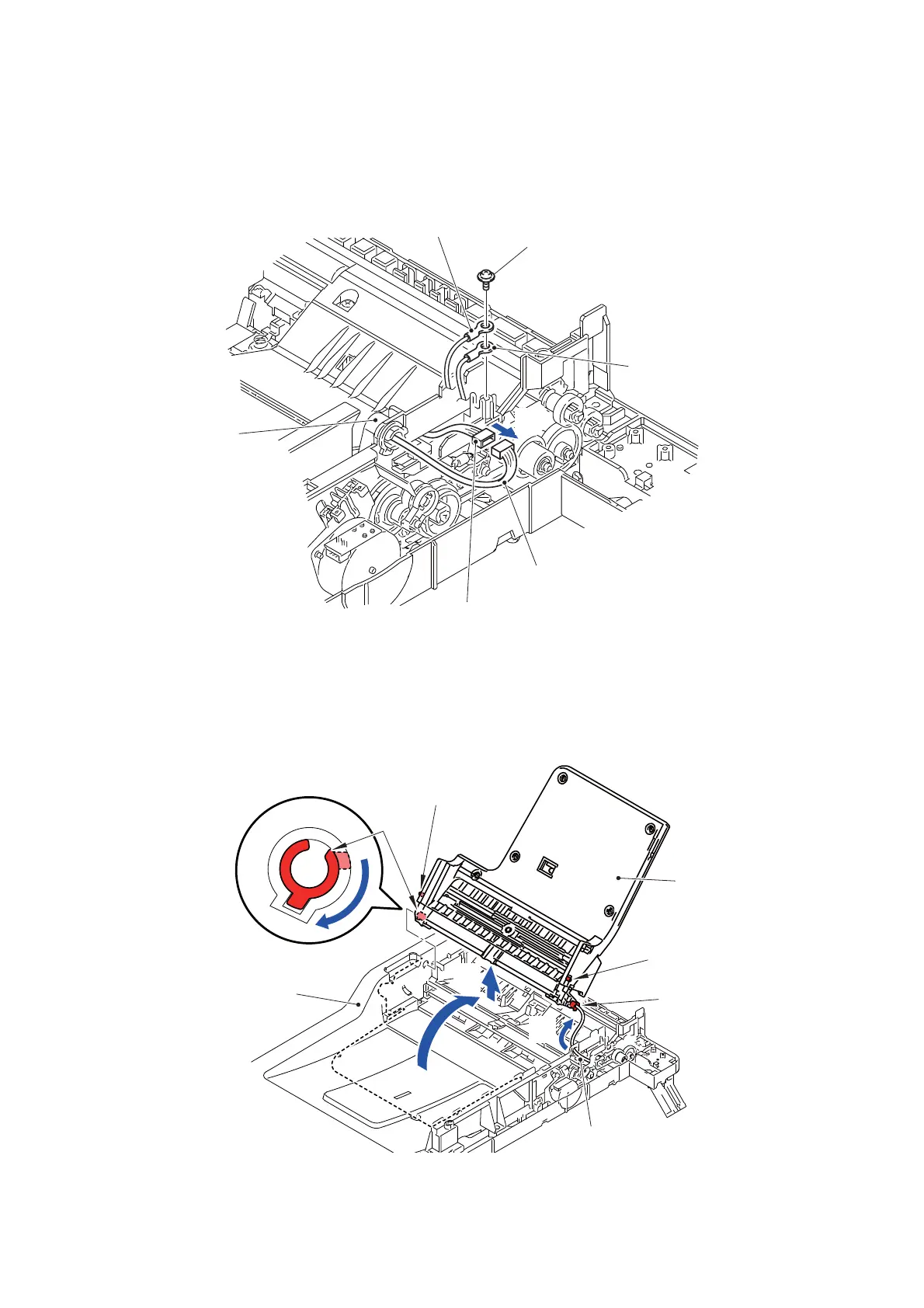

9.17 ADF Document Support
(1) Remove the screw (TAPTITE CUP B M3x10) and remove the ADF document size
FG wire 1 and ADF document size FG wire 2.
(2) Disconnect the Connector from the ADF document size harness unit.
Fig. 3-55
(3) Release the two Pins and turn the ADF document support to the position shown in
the figure.
(4) Release the two Bushings. While removing the Harness, remove the ADF
document support from the ADF unit.
Fig. 3-56
TAPTITE CUP B M3x10
ADF document
support
2
ADF document size FG wire 1
ADF document size FG wire 2
ADF document size harness unit
Connector
ADF document support
Bushing
Bushing
ADF unit
Harness
3
4b
4a
Pin
Pin
