3-122
Confidential
9.49 LT Frame ASSY (T2 Paper Pull-in Roller L/R)
(1) Release the wiring of the LT frame ASSY.
(2) Remove the three screws (TAPTITE BIND B M4x12) and remove the Main body
from the Lower tray unit.

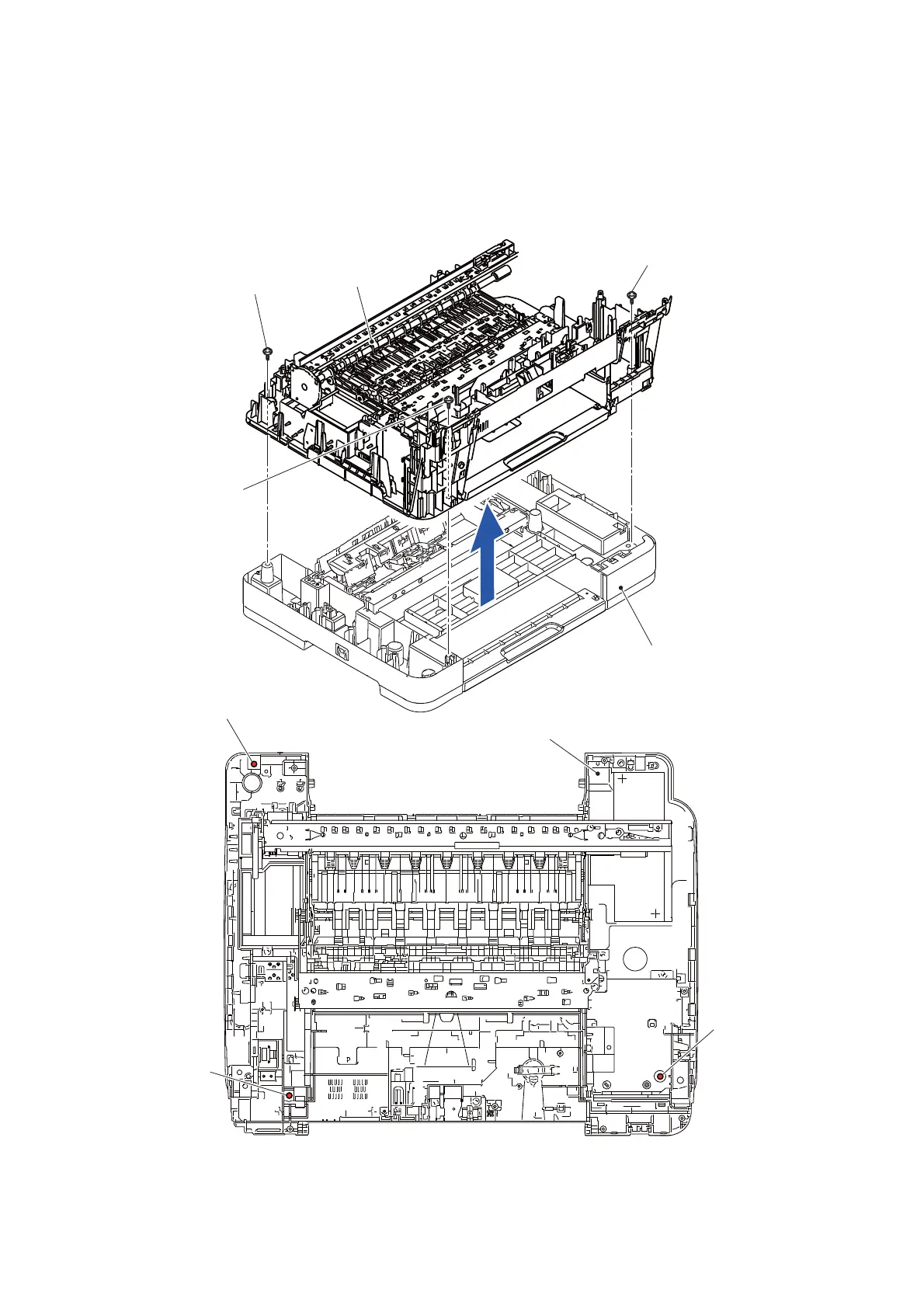

Fig. 3-155
TAPTITE BIND B M4x12
Main body
Lower tray unit
TAPTITE BIND B M4x12
TAPTITE BIND B
TAPTITE BIND B M4x12
TAPTITE BIND
TAPTITE BIND
B M4x12
B M4x12
Main body
<Top view>
M4x12
