Brother MFC-J6535DW Service Manual

3-86
Confidential

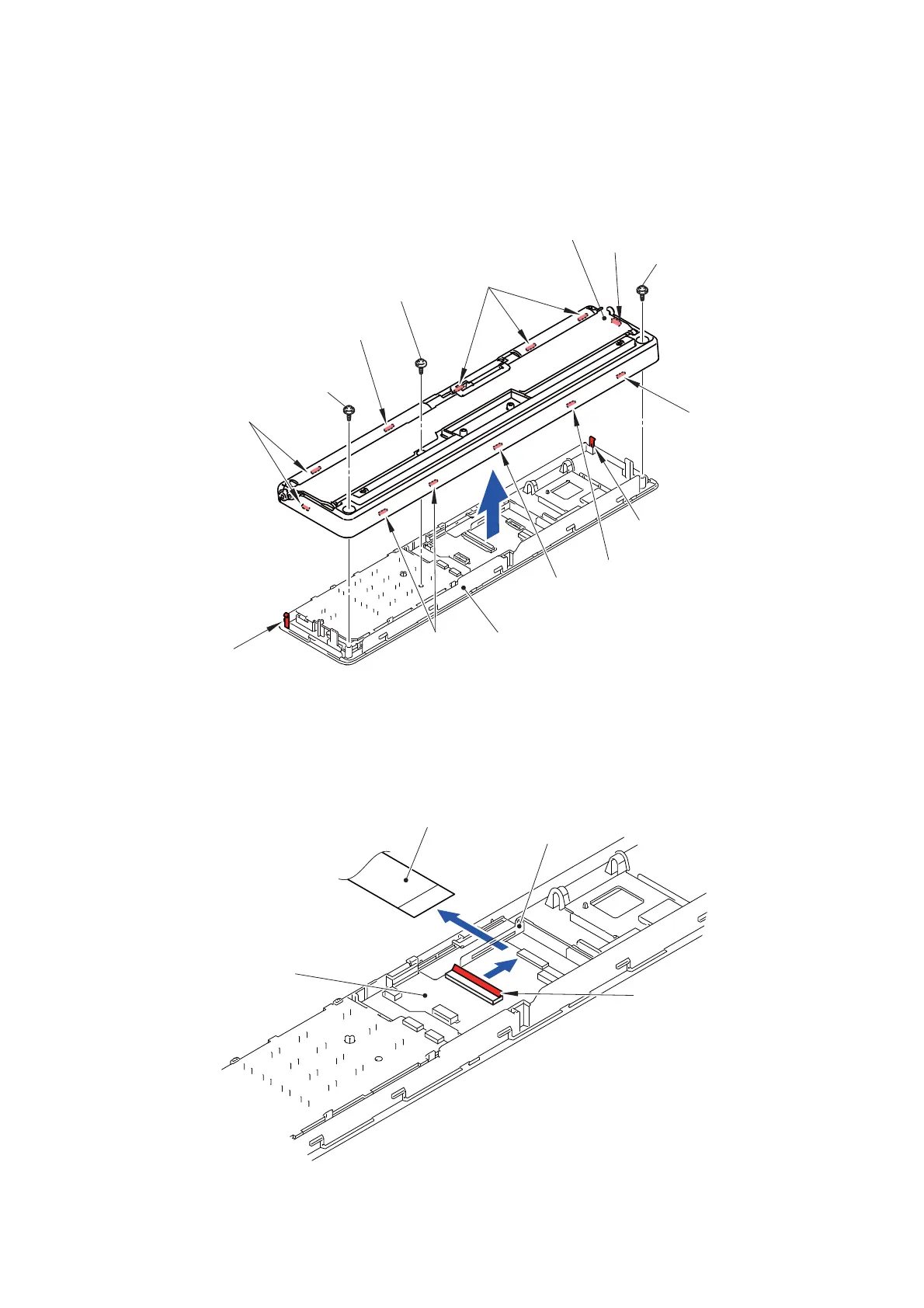

9.28 Panel Flat Cable
(1) Remove the three screws (TAPTITE CUP B M2.6x10).
(2) Release the fourteen Hooks and remove the Panel lower cover from the Panel
upper cover.
Fig. 3-92
(3) Release the Lock of the Connector and remove the Panel flat cable from the LCD
PCB.
(4) < 3.7 inch LCD model only >
Pull out the Panel flat cable from the LCD frame sheet.
Fig. 3-93
Hooks
Hooks
Hooks
Hook
Hook
TAPTITE CUP B M2.6x10
TAPTITE CUP B M2.6x10
TAPTITE CUP B M2.6x10
Panel lower cover
Panel upper cover
Hook
Hook
Hook
Hook
Hook
Panel flat cable
LCD PCB
LCD frame sheet
Connector
3
4
