3-126
Confidential

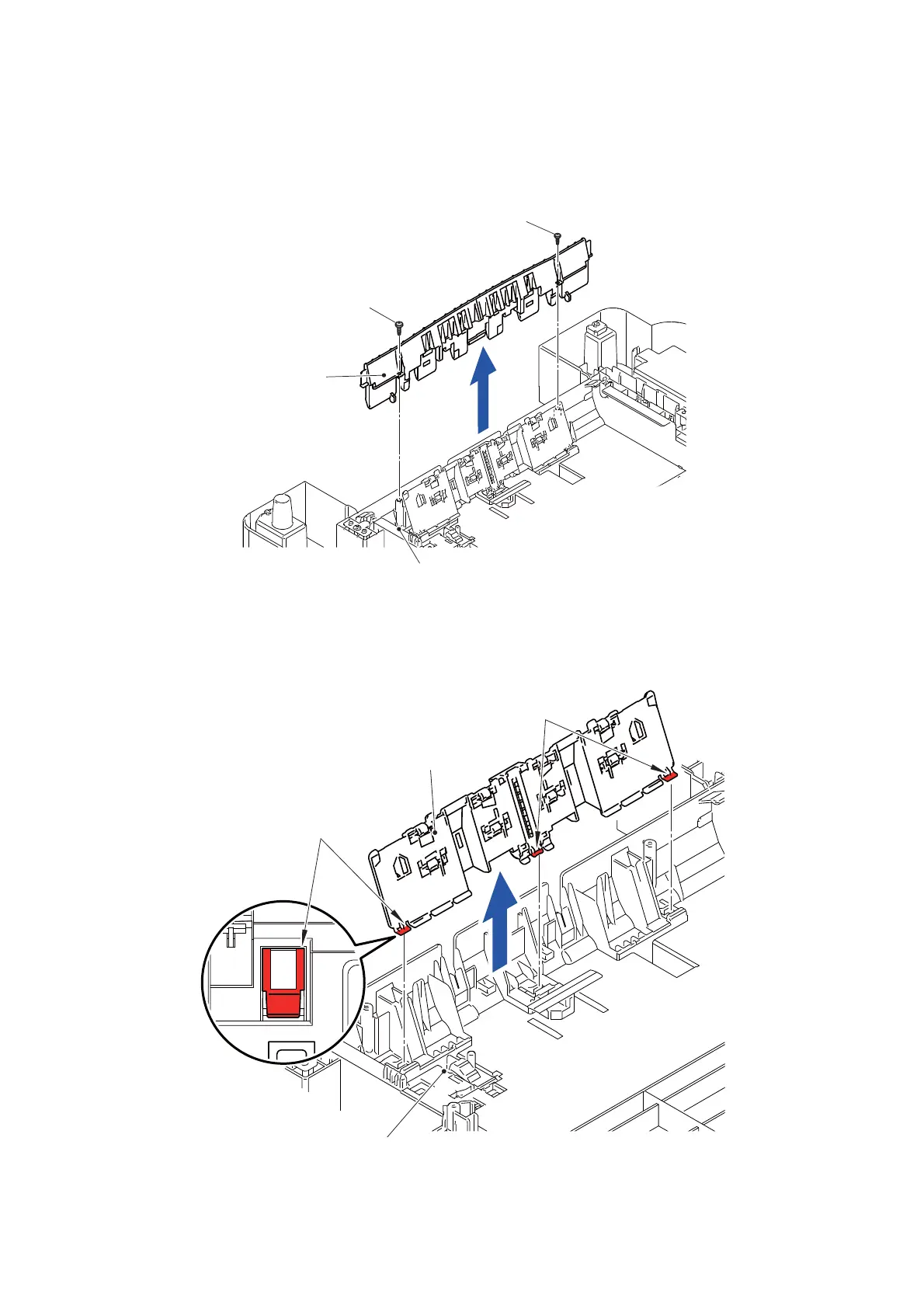

9.50 T2 Bank ASSY
(1)
Remove the two screws (TAPTITE BIND B M3x10) and remove the Bank chute LT from
the Lower tray unit.
Fig. 3-161
(2) Release the three Hooks and remove the T2 bank ASSY from the Lower tray unit.
Fig. 3-162
TAPTITE BIND B M3x10
TAPTITE BIND B M3x10
Lower tray unit
Bank chute LT
Hooks
T2 bank ASSY
Hook
Lower tray unit
