Brother MFC-J6535DW Service Manual

3-136
Confidential
9.57 Platen/Paper Ejection Roller

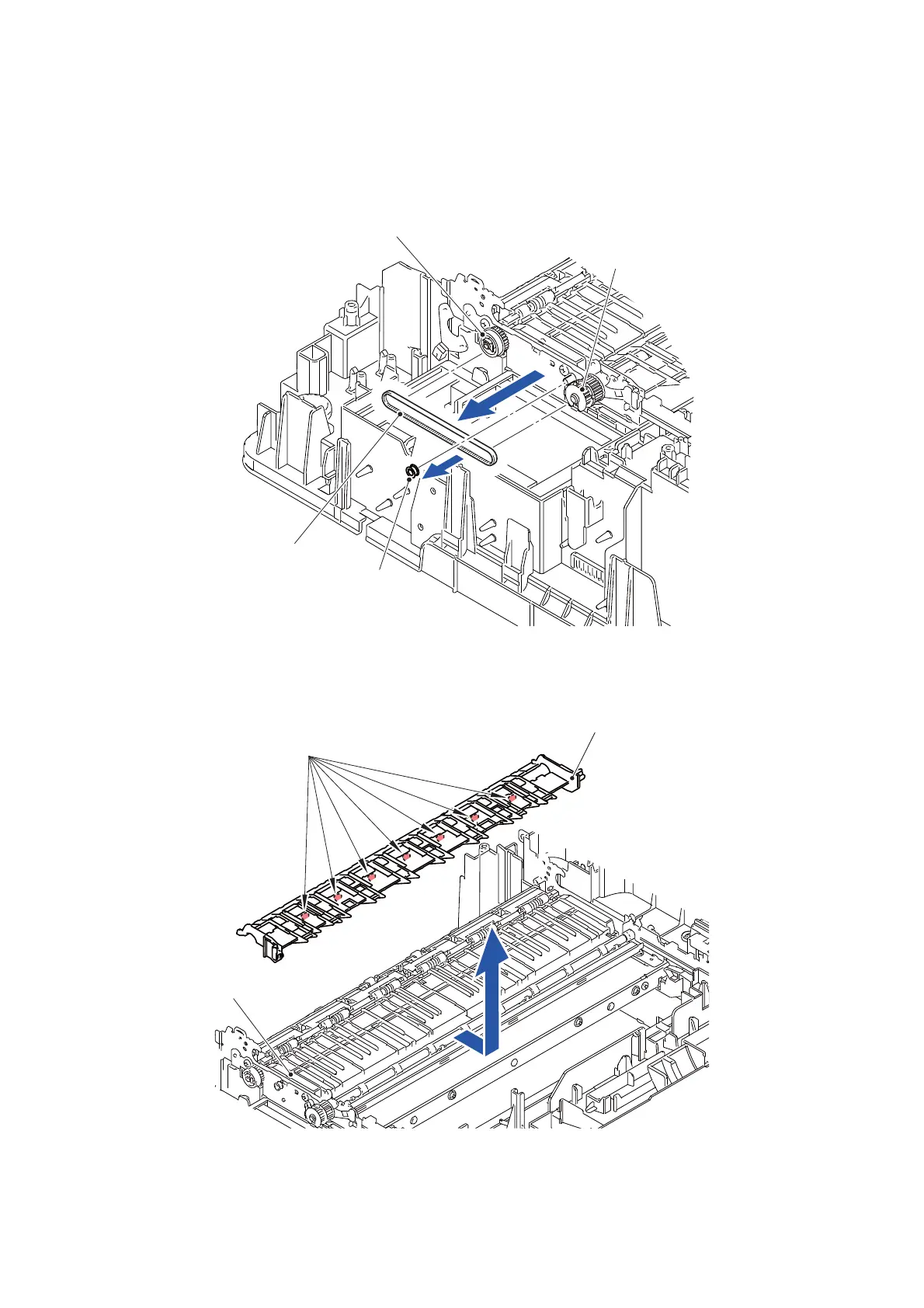

(1) Remove the Idle pulley and remove the Paper ejection roller belt from the Idle gear
pulley and Paper ejection roller.
Note: Be careful not to lose the Idle pulley.
Fig. 3-179
(2) Remove the Switchback inner paper guide from the Main body.
Fig. 3-180
Idle pulley
Paper ejection roller belt
Paper ejection roller
Idle gear pulley
Hooks
Switchback inner paper guide
Main body
