3-51
Confidential
9.7 Top Cover ASSY (Printer model)
(1) Open the Top cover ASSY half way.

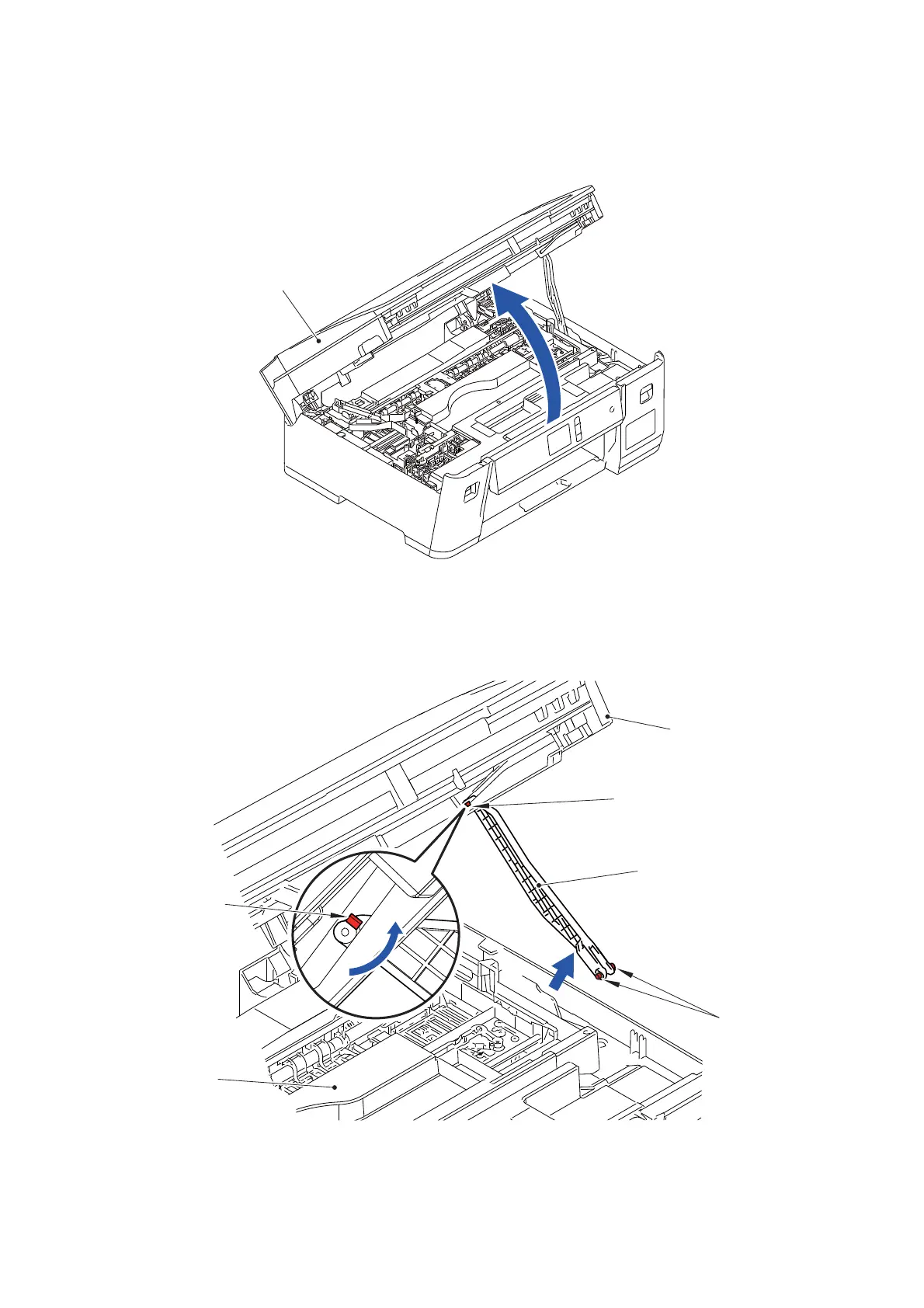

Fig. 3-31
(2) Release the two Hooks of the FB stopper from the Upper cover.
(3) Release the Hook and remove the FB stopper from the Top cover ASSY.
Fig. 3-32
Top cover ASSY
Hooks
FB stopper
Hook
Top cover ASSY
Upper cover
Hook
2
3
