3-148
Confidential

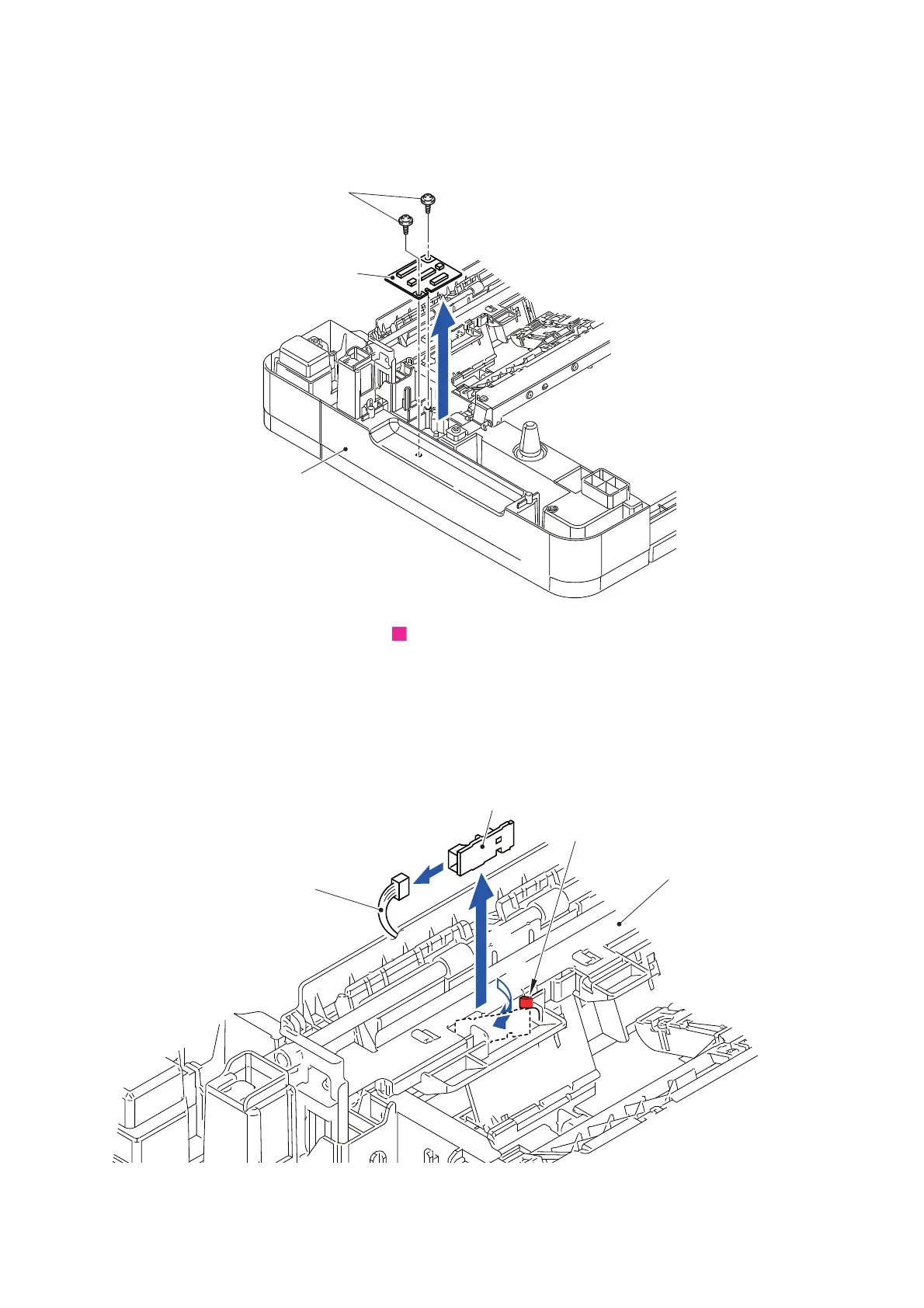

(3) Disconnect the five connectors from the 3rd tray relay PCB.
(4) Remove the two screws (TAPTITE CUP B M3x10) from the 3rd tray relay PCB.
(5) Remove the 3rd tray relay PCB from the 3rd tray unit.
Fig. 3-200
Routing of harnesses: See “ 3rd tray relay PCB”.
9.64 3rd Tray Paper Pull-in Sensor PCB
(1) Release one Lock and remove the 3rd tray paper pull-in sensor PCB from the 3rd
tray sensor holder ASSY.
(2) Release the 3rd tray paper pull-in sensor harness.
Fig. 3-201
3rd tray unit
3rd tray relay PCB
TAPTITE CUP B M3x10
18
3rd tray paper pull-in sensor harness
3rd tray paper pull-in sensor PCB
Lock
1b
1a
2
3rd tray sensor holder ASSY
To Next Page
