9.20 Document Scanning Position Sensor PCB

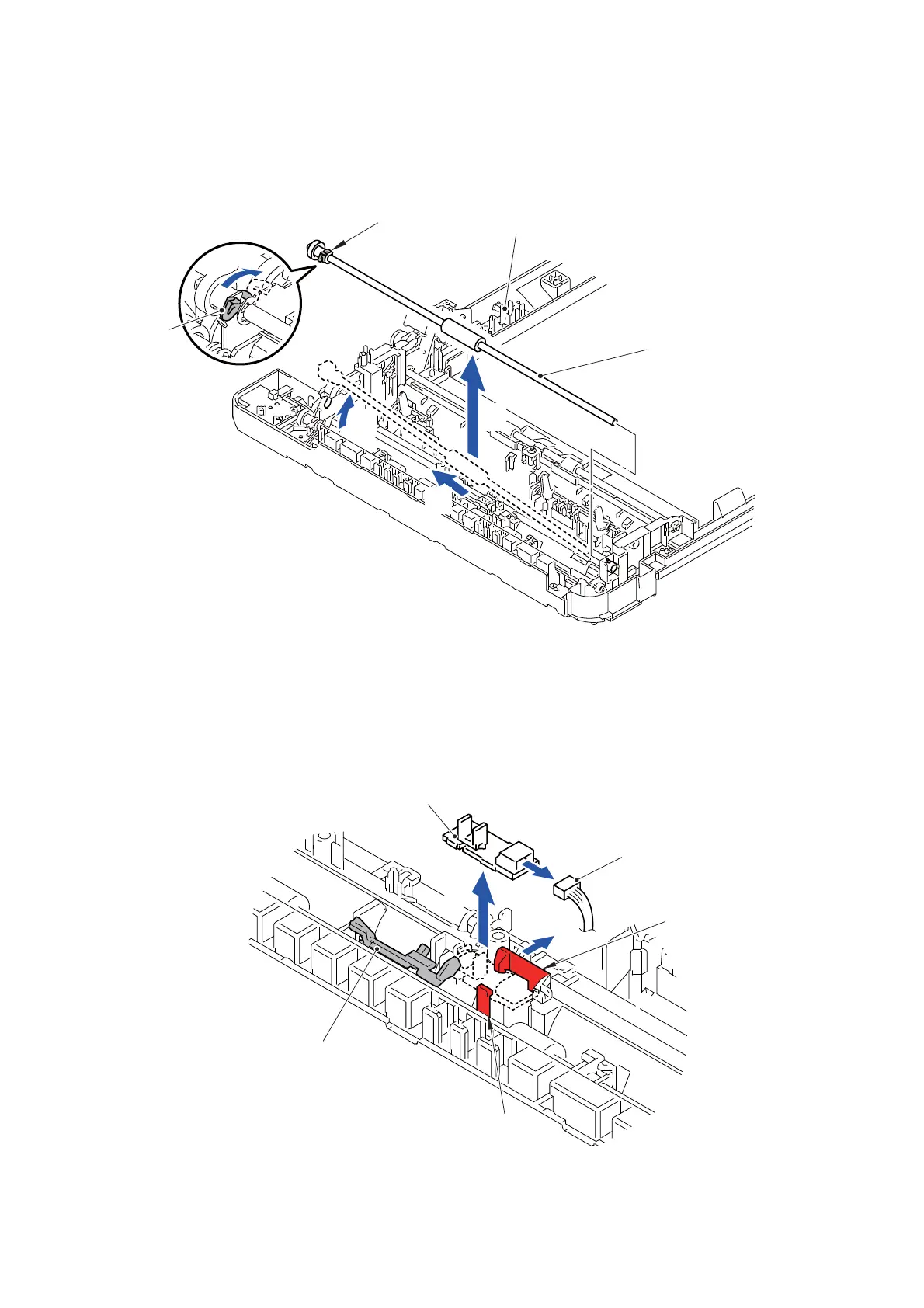

(1) Turn the Bushing of the Document feed roller 1 in the direction of the arrow 1a to
unlock it.
(2) Remove the Document feed roller 1 from the Lower doc chute ASSY.
Fig. 3-63
(3) Keep the Actuator R at the position shown in the figure.
(4) Push the Lock arm in the direction of the arrow 4a and release the Hook. Remove
the Document scanning position sensor PCB from the Lower doc chute ASSY.
(5) Disconnect the Connector from the Document scanning position sensor PCB.
Fig. 3-64
Document feed roller 1
Bushing
Lower doc chute ASSY
1a
Bushing
2a
2b
2c
Actuator R
Document scanning position sensor PCB
Connector
Hook
4a
Lock arm
4b
5
