Brother MFC-J6535DW Service Manual

3-99
Confidential
9.37 Maintenance Unit

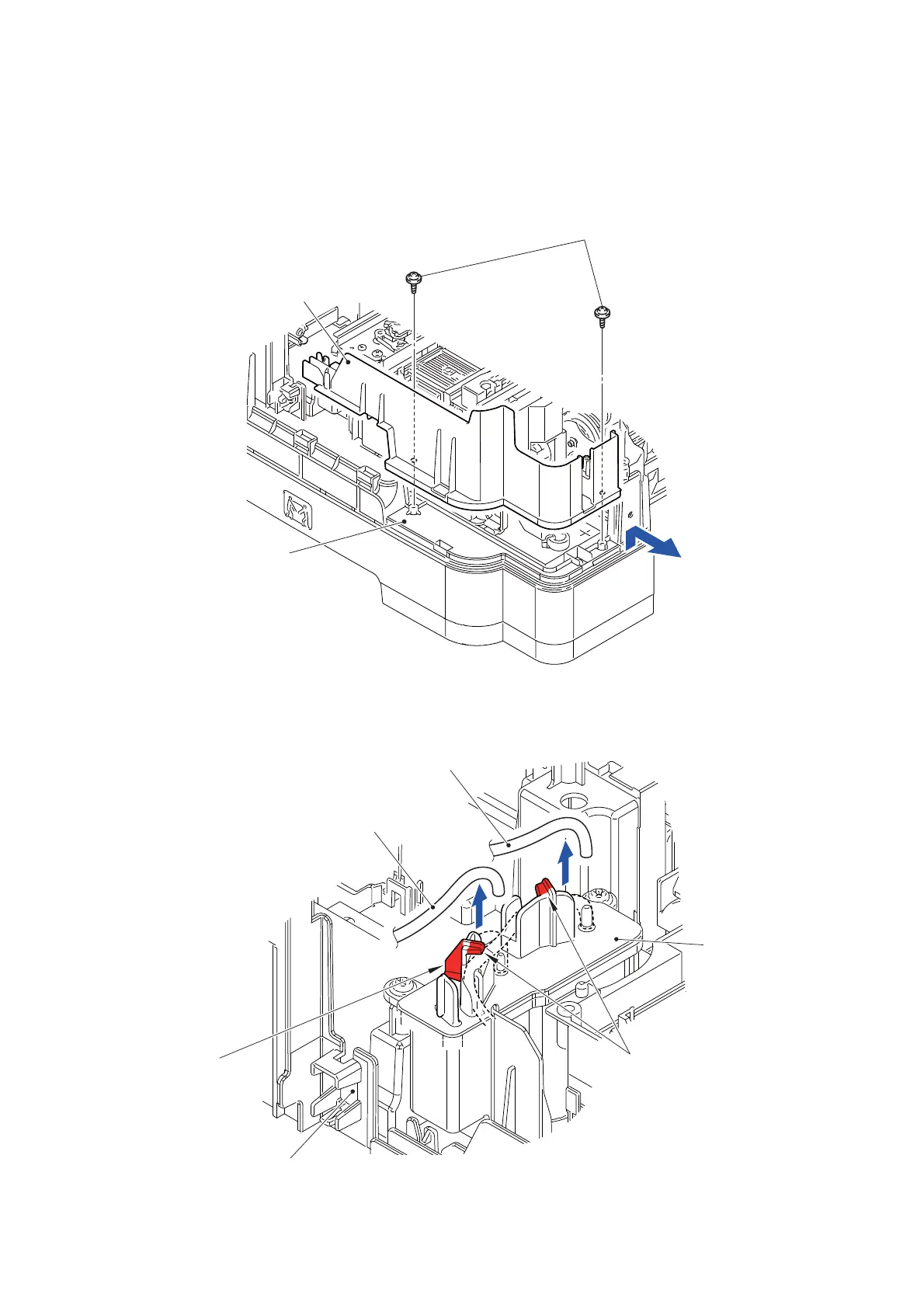

(1) Remove the two screws (TAPTITE CUP B M3x10), release the ferrite core and the
wiring attached to the Lower side cover R and remove the
Lower side cover R from
the Lower cover.
Fig. 3-115
(2) Remove the Air vent tube and Drain tube from the Ink ABS upper box ASSY.
Fig. 3-116
TAPTITE CUP B M3x10
Lower side cover R
Lower cover
Ink ABS upper
box ASSY
Lower cover
Air vent tube
Drain tube
Guide
Guide
