3-135
Confidential

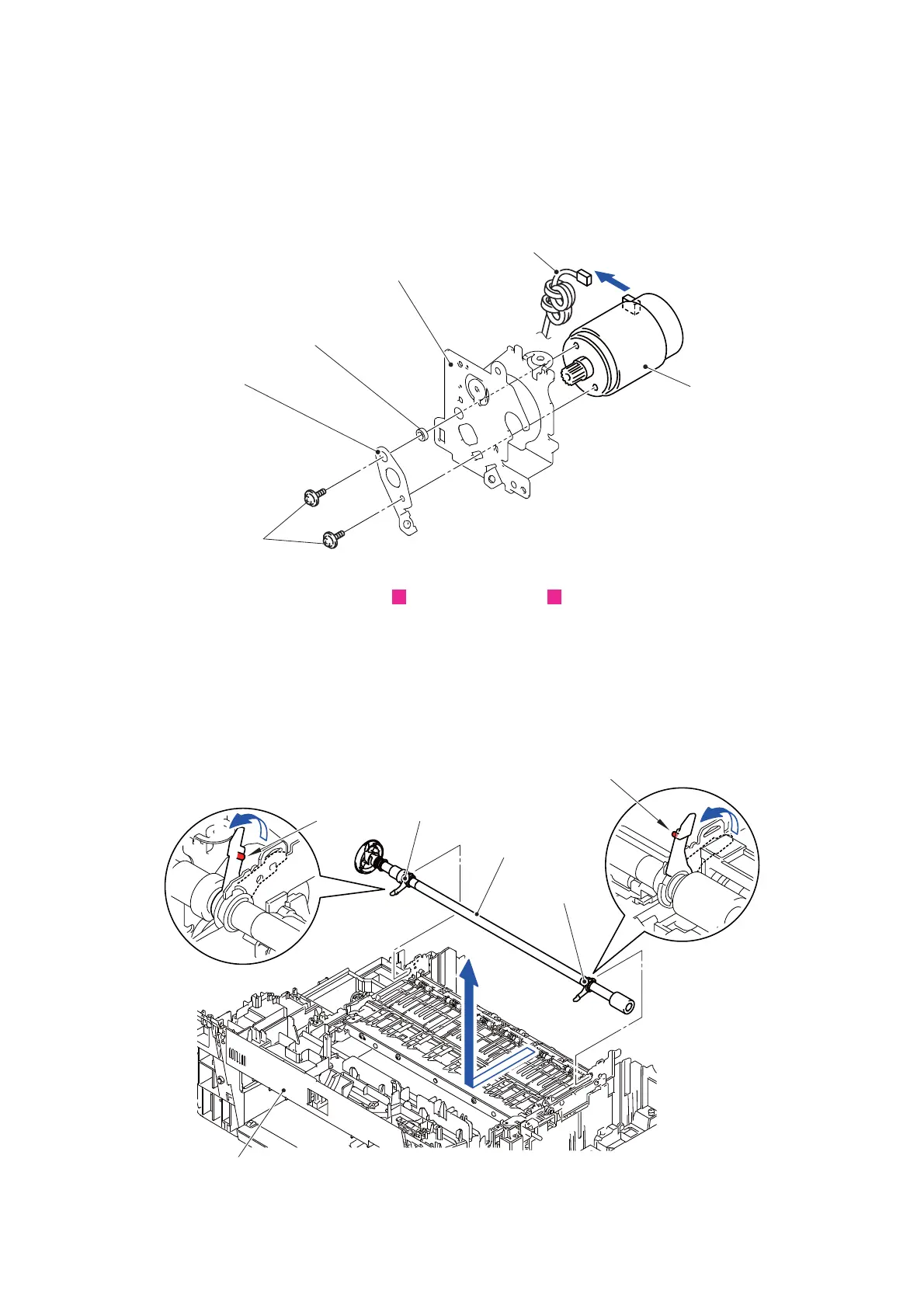

(9) Remove the two screws (SCREW PAN (S/P WASHER) M3x6) and remove the
Paper feed motor from the Paper feed motor frame ASSY.
Note: When removing the Paper feed motor, be careful not to lose the Paper feed
motor sleeve.
(10)Disconnect the PF motor harness from the Paper feed motor.
Fig. 3-177
Routing of harnesses: See “ Lower cover L”, “ Paper feed motor”.
9.56 Paper Feed Roller
(1) Turn the PF bushing L2 in the direction of the arrow to unlock it.
(2) Turn the PF bushing R in the direction of the arrow to unlock it.
(3) Remove the Paper feed roller from the Main body.
Fig. 3-178
Paper feed motor frame ASSY
Paper feed motor
Paper feed motor sleeve
Paper feed motor plate
SCREW PAN
PF motor harness
(S/P WASHER) M3x6
7
10
PF bushing L2
Paper feed roller
PF bushing R
Lock
1
2
Lock
3
Main body
To Next Page
