Brother MFC-J6535DW Service Manual

3-59
Confidential

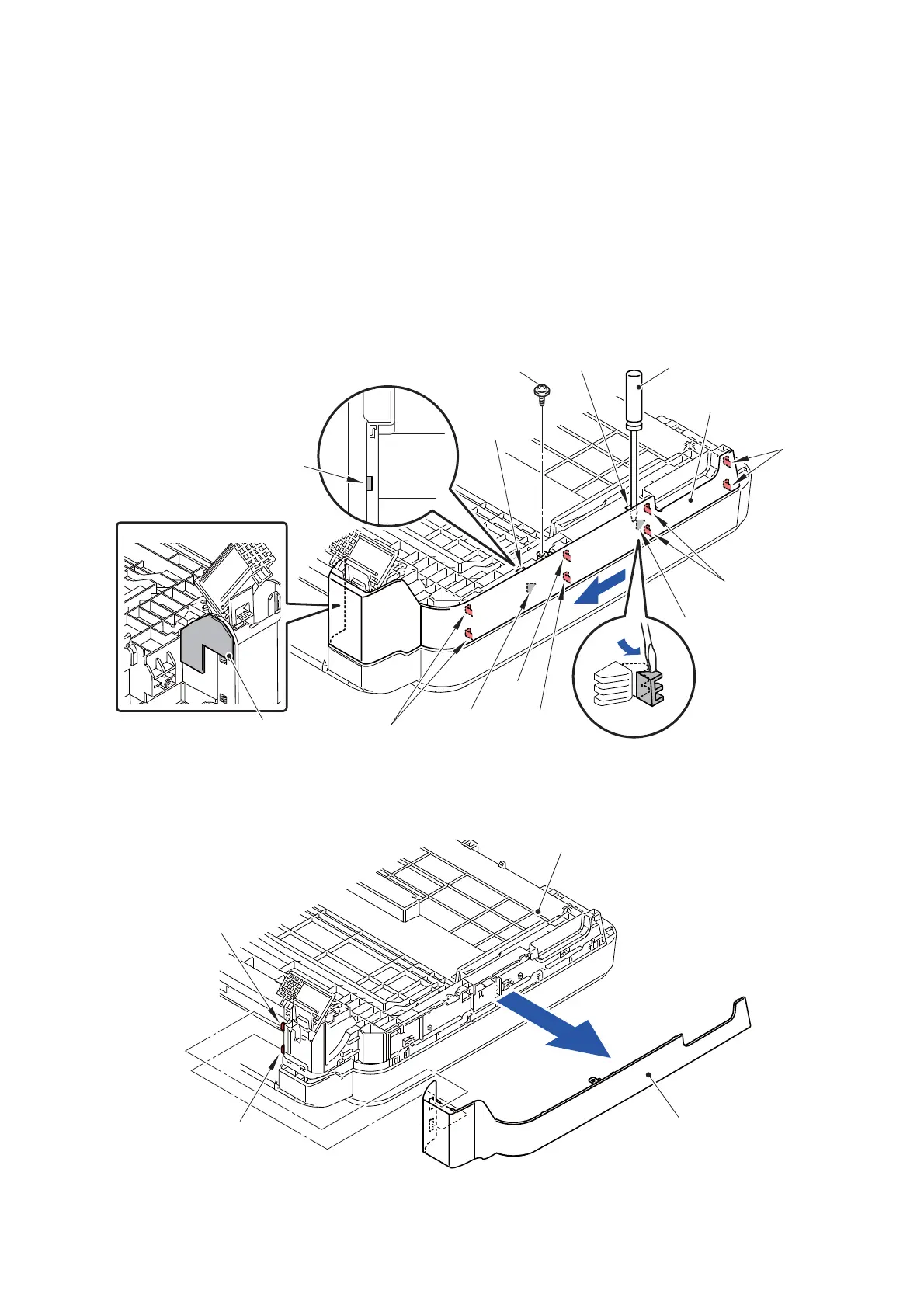

9.9 Document Scanner Side Cover R/< India model only > Document Scanner
Dust Foam
(1) < India model only >
Peel off the Document scanner dust foam from the Document scanner unit.
Note: Once removed, the Document scanner dust foam should be replaced with a
new one.
(2) Remove the screw (TAPTITE CUP B M3x10) from the Document scanner side
cover R.
(3) Insert a flat screwdriver into the cutout and release the section “A” and section “B”.
(4) Slide the Document scanner side cover R in the direction of the arrow and release
the eight Hooks.
Fig. 3-45
(5) Release the two Hooks and remove the Document scanner side cover R from the
Document scanner unit.
Fig. 3-46
TAPTITE CUP B M3x10
Hooks
Document scanner
side cover R
Cutout
“A”
“B”
Cutout
Cutout
Flat screwdriver
Hooks
Hooks
Hook
Hook
Document scanner dust foam
< India model only >
Document scanner side cover R
Hook
Document scanner unit
Hook
