3-75
Confidential

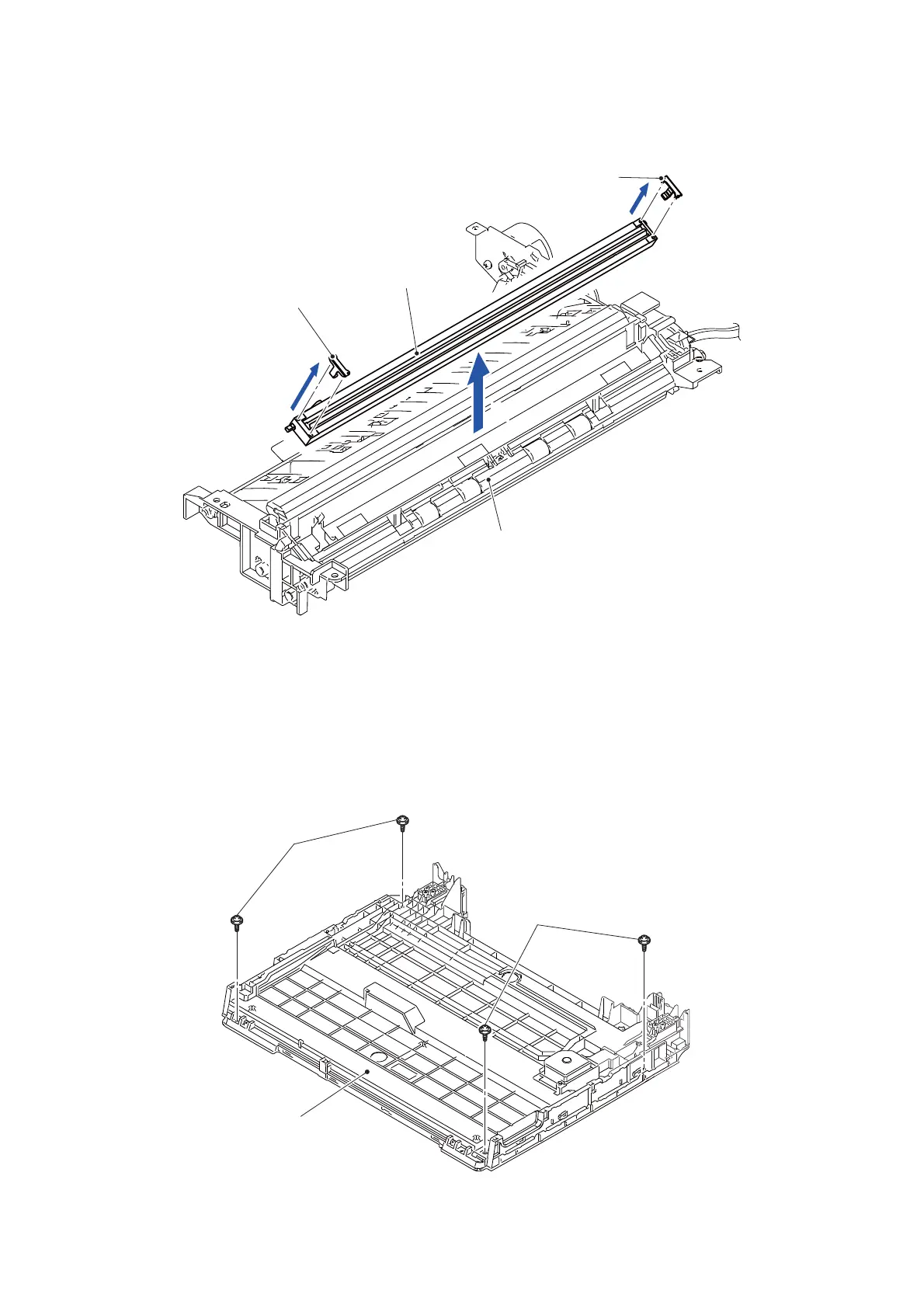

(12)Remove the Second side CIS unit from the Lower doc chute ASSY.
(13)Remove the CIS spacer from the Second side CIS unit.
Fig. 3-72
9.22 First Side CIS Unit/First Side CIS Flat Cable
(1) Turn the Document scanner unit upside down.
(2) Remove the four screws (TAPTITE CUP B M2.6x10).
Assembling Note: When tightening the screw (TAPTITE CUP B M2.6x10), tighten
them in the order shown in the figure.
Fig. 3-73
Lower doc chute ASSY
Second side CIS unit
CIS spacer
CIS spacer
13
13
12
TAPTITE CUP B M2.6x10
TAPTITE CUP B M2.6x10
Document scanner unit
1
2
3
4
To Next Page
