3-93
Confidential
9.33 Touch Panel
< 3.7 inch LCD model >

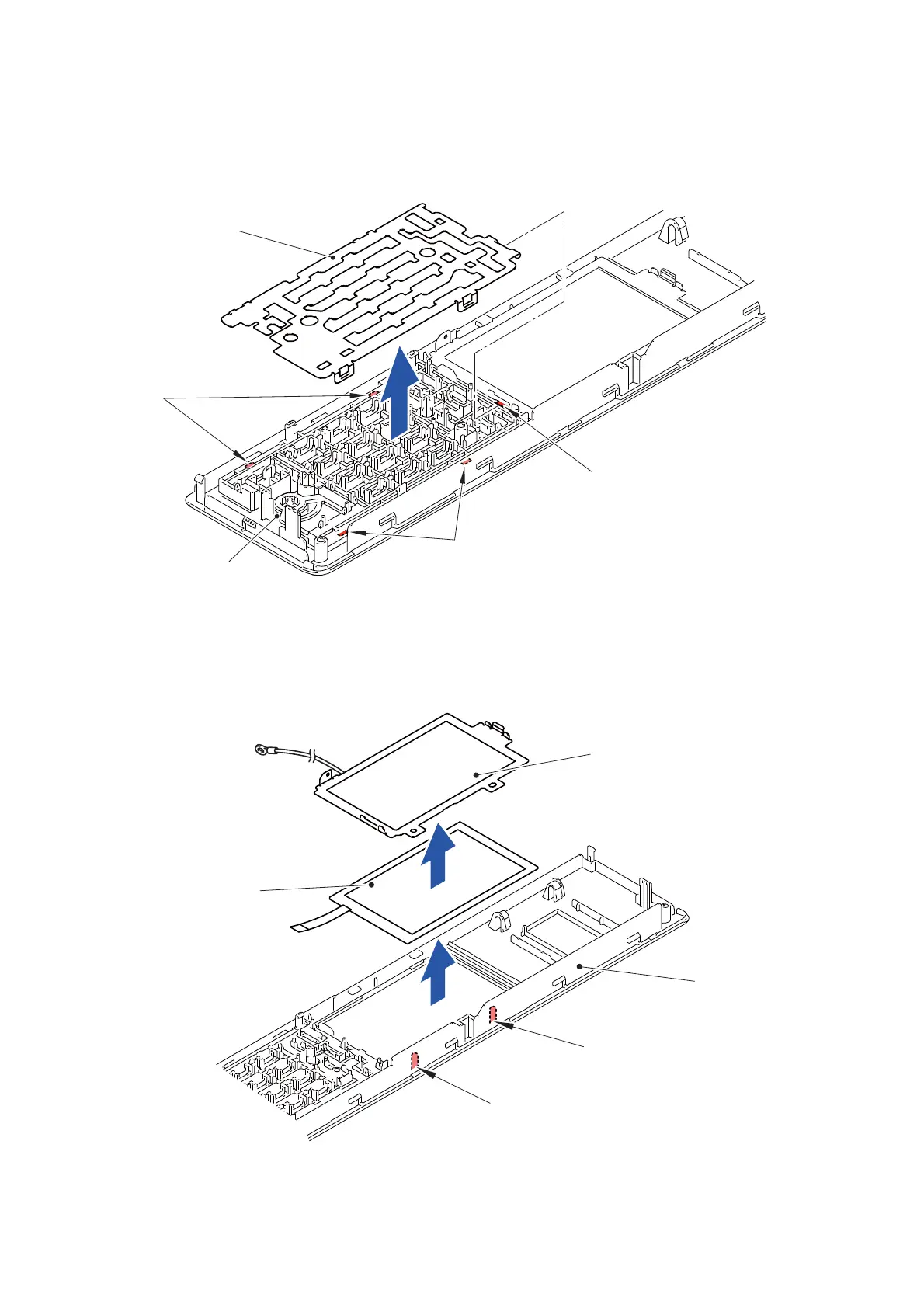

(1) Release the five Hooks and remove the Antistatic plate from the Key holder ASSY.
Fig. 3-104
(2) Remove the Touch panel plate from the Panel upper cover.
(3) Remove the Touch panel from the Panel upper cover.
Fig. 3-105
Hooks
Hooks
Hook
Antistatic plate
Key holder ASSY
2
3
Touch panel plate
Touch panel
Panel upper
Boss
Boss
cover
