3-92
Confidential
(4) Remove the LCD holder from the Touch panel plate.
(5) Release the Hook and remove the LCD from the Touch panel plate.

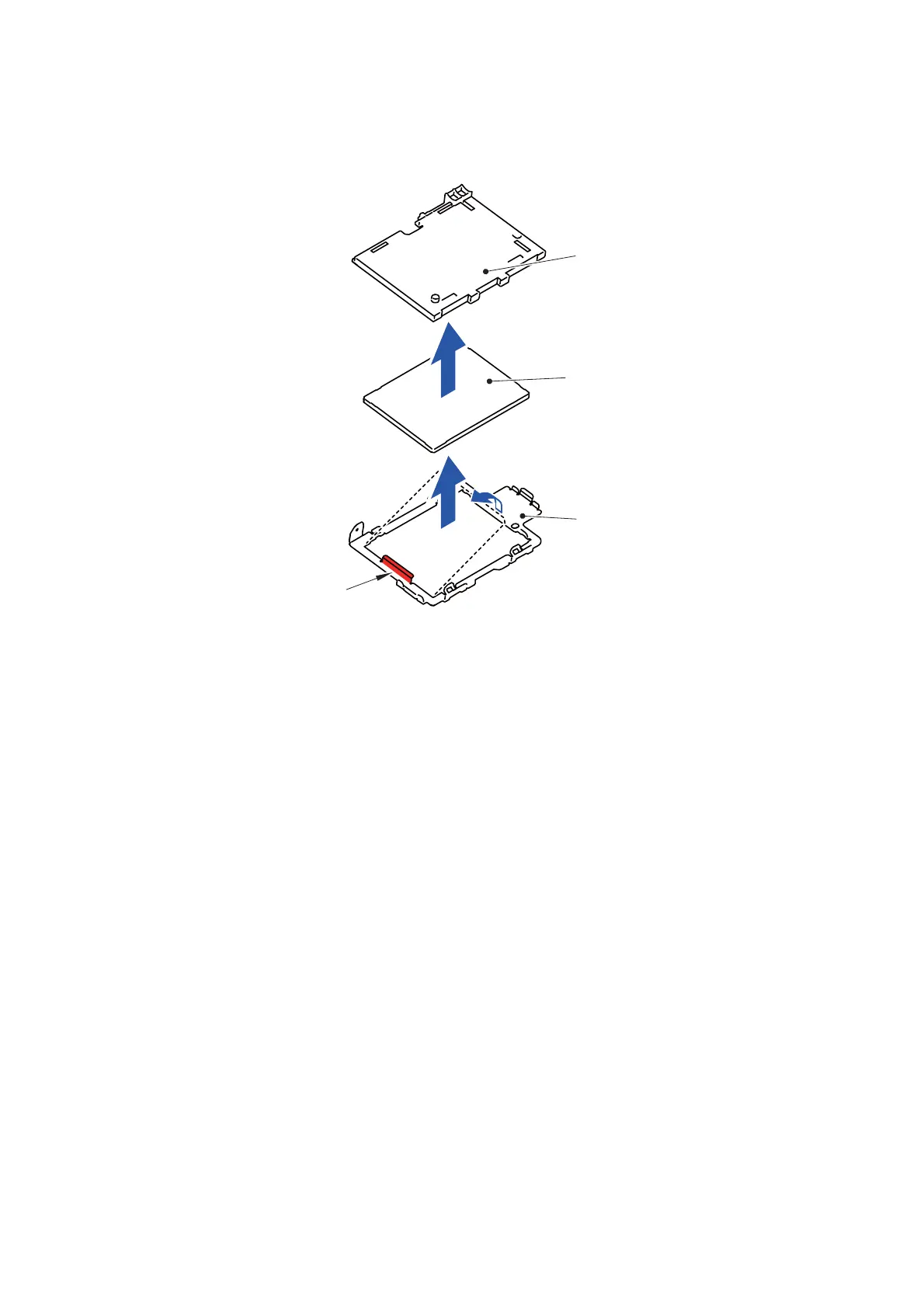

Fig. 3-103
4
5a
LCD
LCD holder
Touch panel plate
5b
Hook
