Brother MFC-J6535DW Service Manual

3-131
Confidential
9.54 PF Encoder Sensor PCB

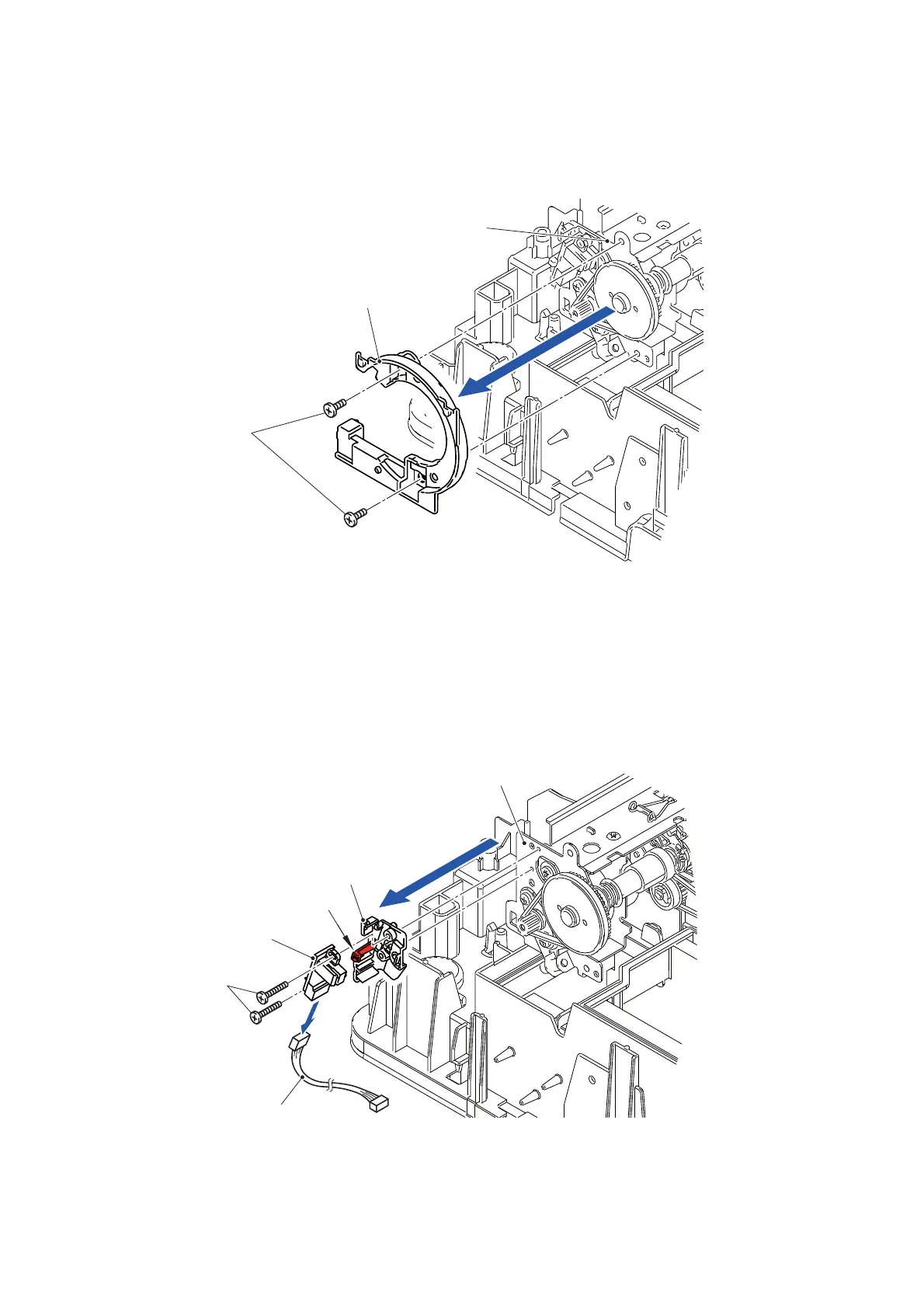

(1) Remove the two screws (SCREW BIND M3x6) and remove the Encoder cover
from the PF motor frame.
Fig. 3-170
(2) Release the wiring of the PF encoder sensor harness.
(3) Remove the two screws (SCREW BIND M2x12) and remove the Encoder sensor
holder from the PF motor frame.
(4) Release the Hook and remove the PF encoder sensor PCB from the Encoder
sensor holder.
(5) Disconnect the PF encoder sensor harness from the PF encoder sensor PCB.
Fig. 3-171
SCREW BIND M3x6
Encoder cover
PF motor frame
PF motor frame
Encoder sensor holder
PF Encoder sensor PCB
SCREW BIND
PF encoder sensor harness
3
5
M2x12
Hook
