Brother MFC-J6535DW Service Manual

3-118
Confidential
9.47 Carriage Motor

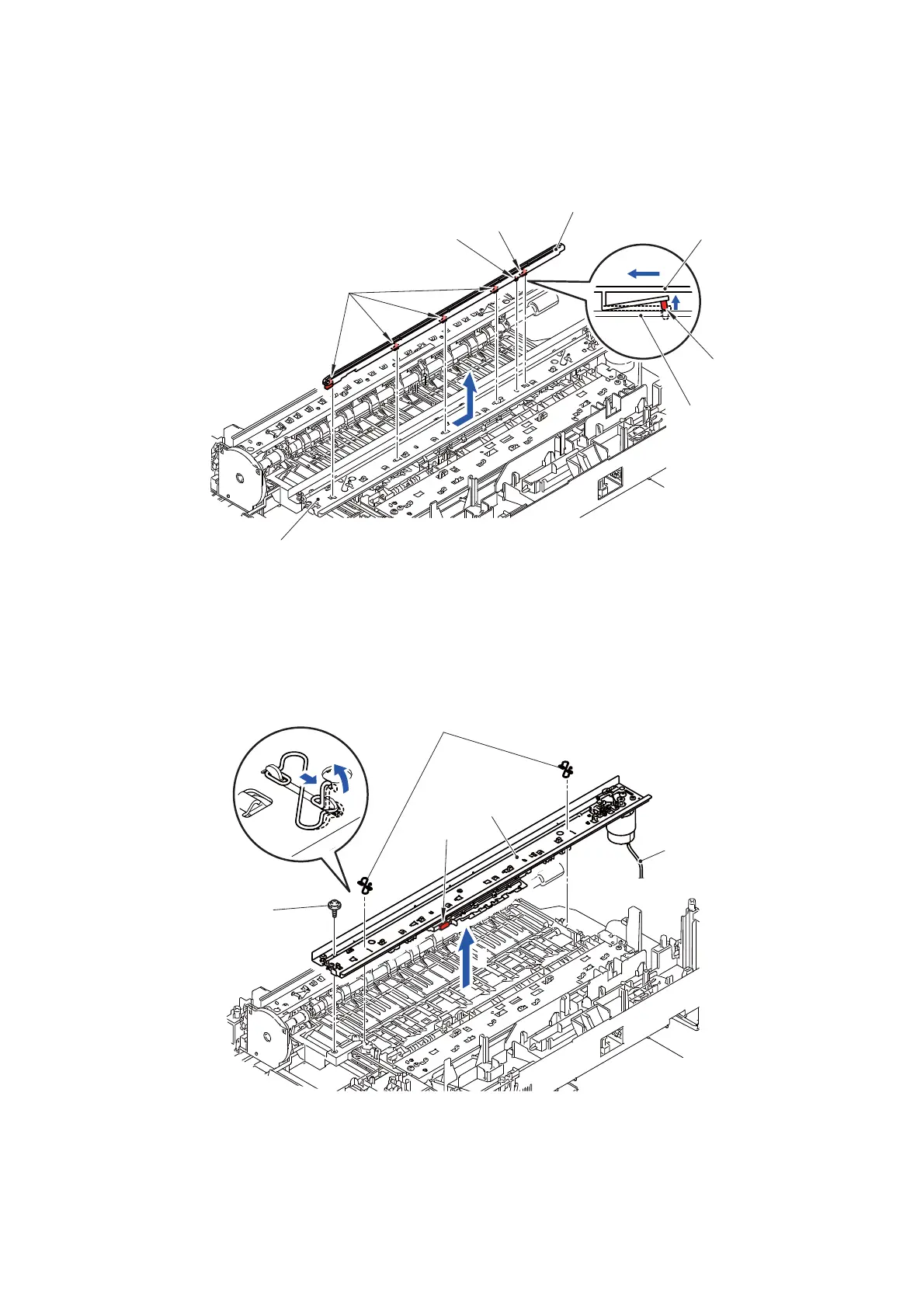

(1) Release the Boss and five Hooks and remove the Tube protector from the CR
frame ASSY.
Fig. 3-148
(2) Remove the ferrite core, and release the wiring of the Carriage motor harness.
(3) Remove the screw (TAPTITE CUP B M3x10) from the CR frame ASSY.
(4) Remove the two CR frame springs from the CR frame ASSY.
(5) Release the Hook and remove the CR frame ASSY from the Main body.
Fig. 3-149
Hooks
Hook
Boss
Tube protector
CR frame ASSY
Tube protector
Boss
CR frame ASSY
CR frame spring
CR frame ASSY
Hook
TAPTITE CUP B
M3x10
4
5
Carriage motor harness
