3-34
Confidential
9.2 Head Joint Rubber/Head/carriage Unit/CR Timing Belt/
< India model only > Edge Cover Dust Foam

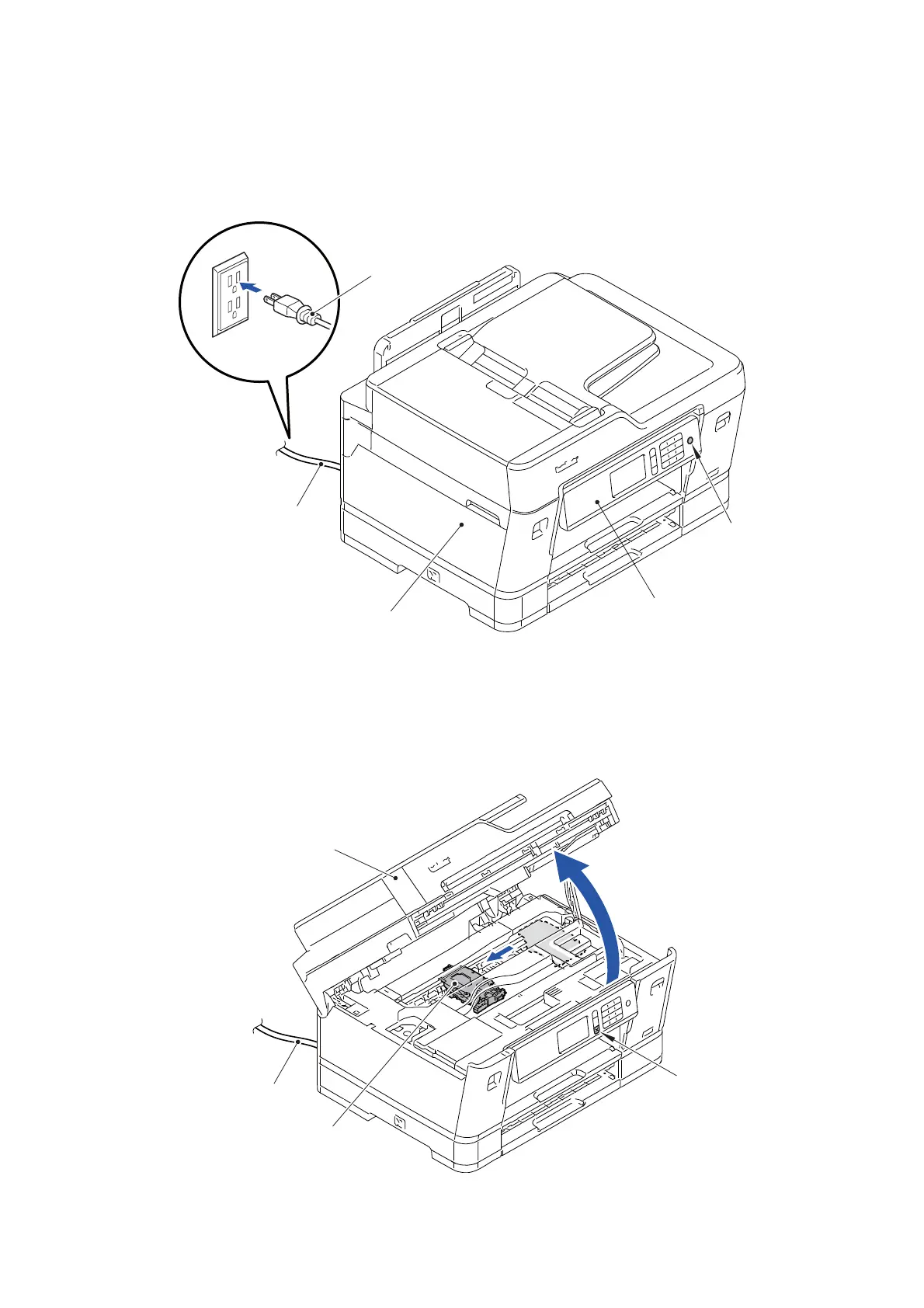

(1) Plug the Power cord into an electrical outlet.
(2) Press the power switch to turn on the power.
Fig. 3-1
(3) Open the Document scanner unit.
(4) Hold down the Stop key, and the Head/carriage unit automatically moves to the
position shown in the figure.
(5) Pull out the Power cord from the electrical outlet.
Fig. 3-2
Main body
Control panel ASSY
Power cord
Power cord
Power switch
Document scanner unit
Head/carriage unit
Stop key
Power cord
To Next Page
