3-147
Confidential
9.63 3rd Tray Relay PCB
(1) Release the wiring of the 3rd tray relay harness from the Lower tray unit.
(2) Remove the six screws (TAPTITE BIND B M4x12) and remove the Lower tray unit
from the 3rd tray unit.

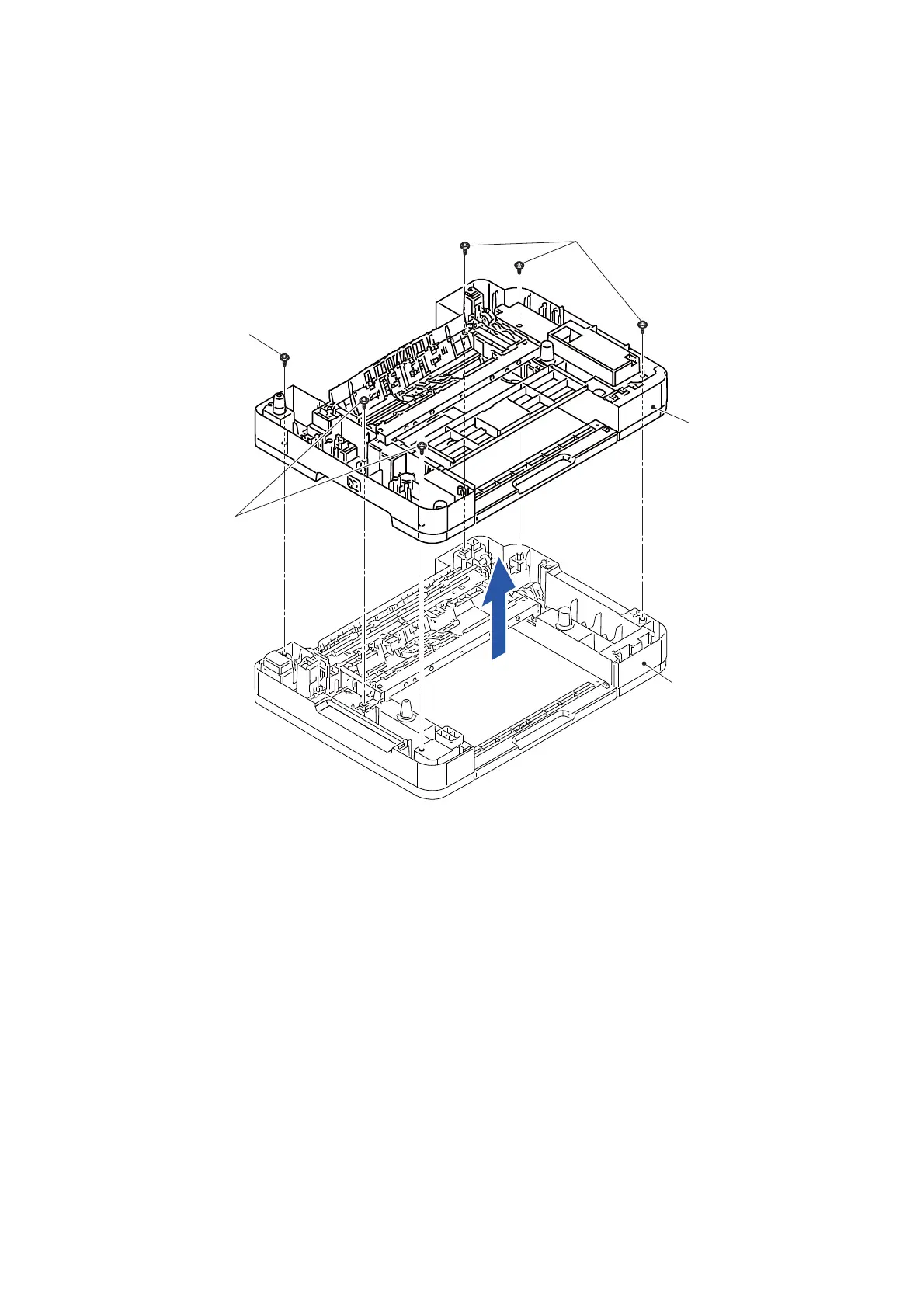

Fig. 3-199
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
Lower tray unit
3rd tray unit
