9.46 CR Encoder Strip
(1) Remove the CR encoder strip from the Encoder spring.
(2) Remove the CR encoder strip from the CR frame ASSY.
Note: Take care not to scratch the CR encoder strip. If it is stained or scratched,
replace it with a new one.
Assembling Note: When mounting the CR encoder strip, be sure to mount it in a way
that the â–² -marked point comes to the right side (carriage motor
side) and the â–² mark points up.

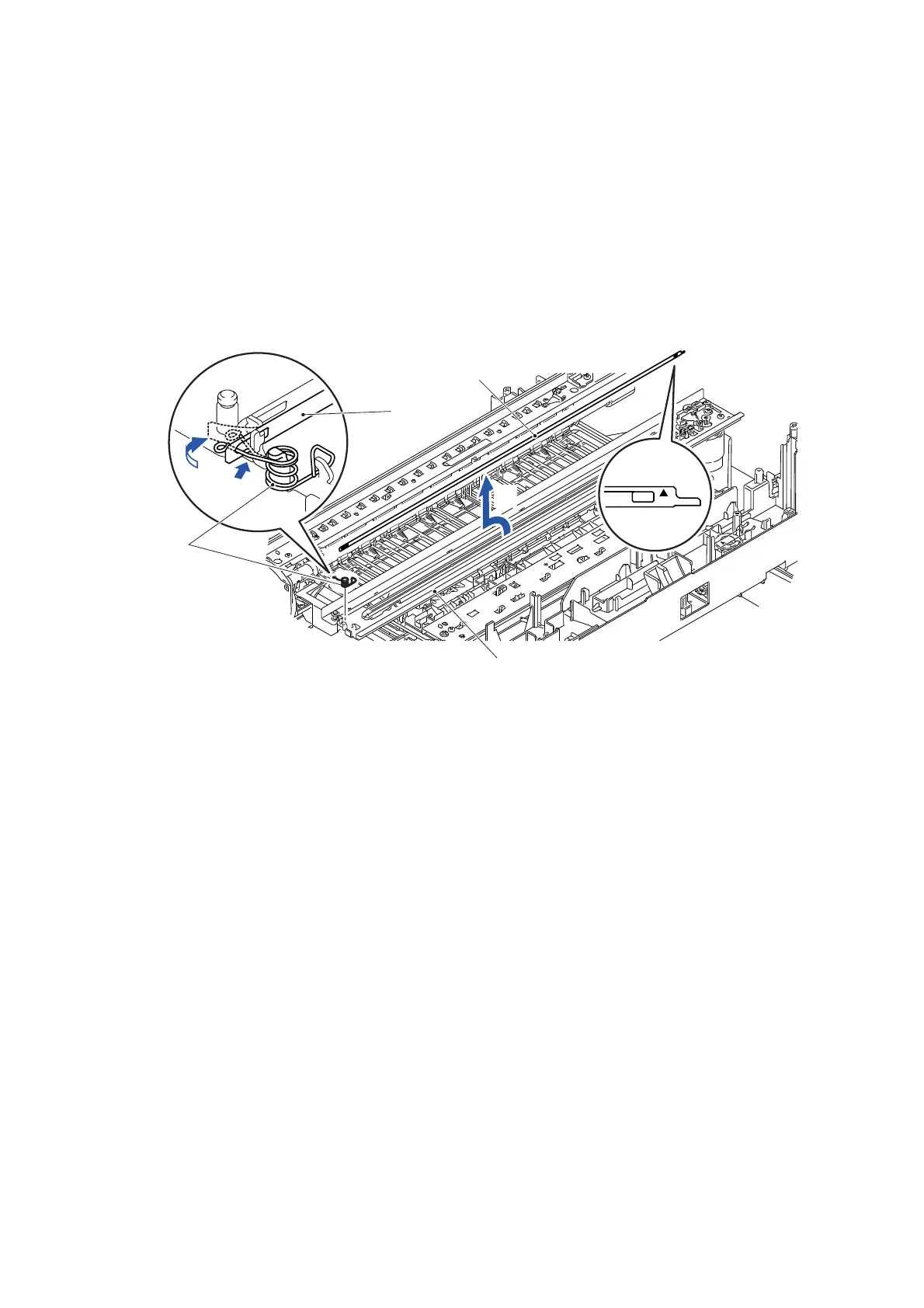

Fig. 3-147
CR encoder
CR encoder strip
Encoder
CR frame ASSY
strip
spring
1
2
