3-144
Confidential
9.61 T1 Bank ASSY

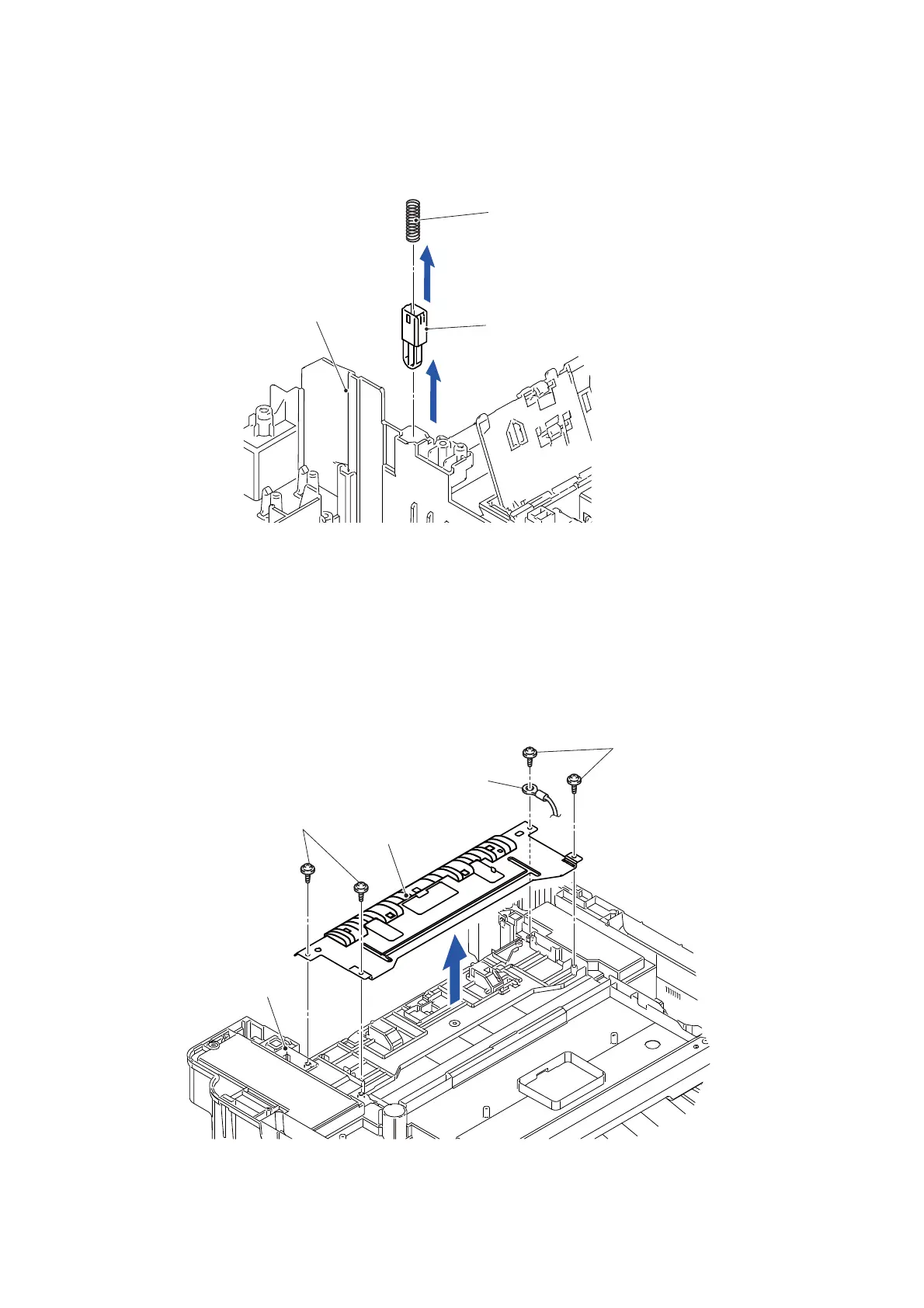

(1) Remove the Tray lock cam and Tray lock spring from the Lower cover.
Fig. 3-195
(2) Turn the Main body upside down.
(3) Remove the screw (TAPTITE CUP B M3x10) and remove the Tray FG wire.
(4) Remove the three screws (TAPTITE CUP B M3x10) and remove the Lower cover
frame from the Lower cover.
Assembling Note: When tightening the four screws (TAPTITE CUP B M3x10), tighten
them in the order shown in the figure.
Fig. 3-196
Lower cover
Tray lock cam
Tray lock spring
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
Lower cover
Lower cover frame
Tray FG wire
1
2
3
4
To Next Page
