Brother MFC-J6535DW Service Manual

3-142
Confidential

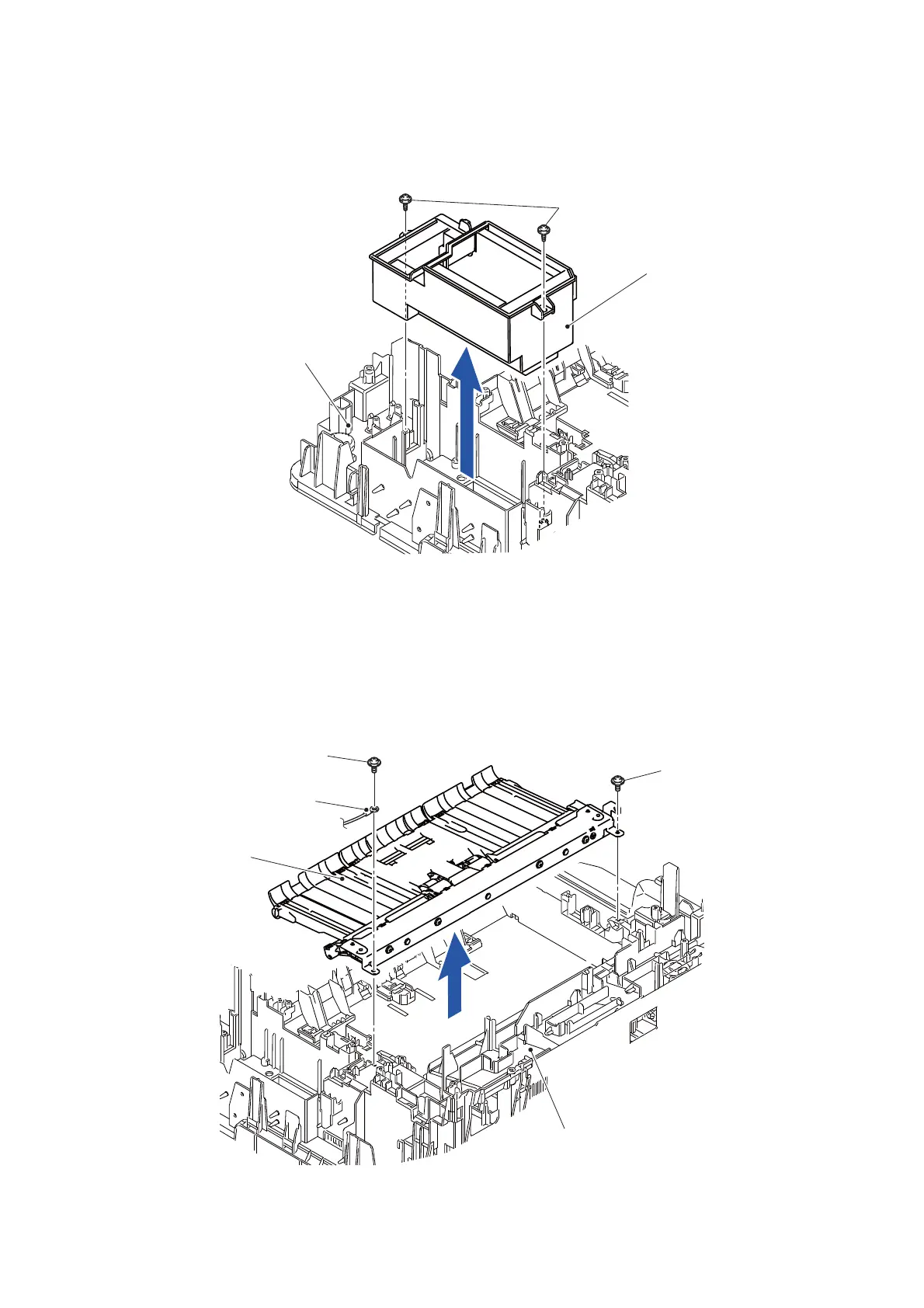

9.59 Flushing Box
(1) Remove the two screws (TAPTITE CUP B M3x10) and remove the Flushing box
from the Lower cover.
Fig. 3-191
9.60 Paper Feed Arm Frame ASSY (T1 Paper Pull-in Roller L/R)
(1) Release the wiring of the Paper feed arm frame ASSY.
(2) Remove the two screws (TAPTITE CUP B M3x10) and remove the Paper feed arm
frame ASSY from the Lower cover.
Assembling Note: When tightening the two screws (TAPTITE CUP B M3x10), tighten
them in the order shown in the figure.
Fig. 3-192
Flushing box
TAPTITE CUP B M3x10
Lower cover
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
Paper feed arm
Lower cover
frame ASSY
1
2
Engine FG wire
