Brother MFC-J6535DW Service Manual

3-61
Confidential
9.11 ADF Front Cover
(1) Turn the ADF unit upside down.
(2) Remove the four screws (TAPTITE CUP B M3x10) from the ADF front cover.
(3) Release the two Bosses and remove the ADF front cover from the ADF unit.

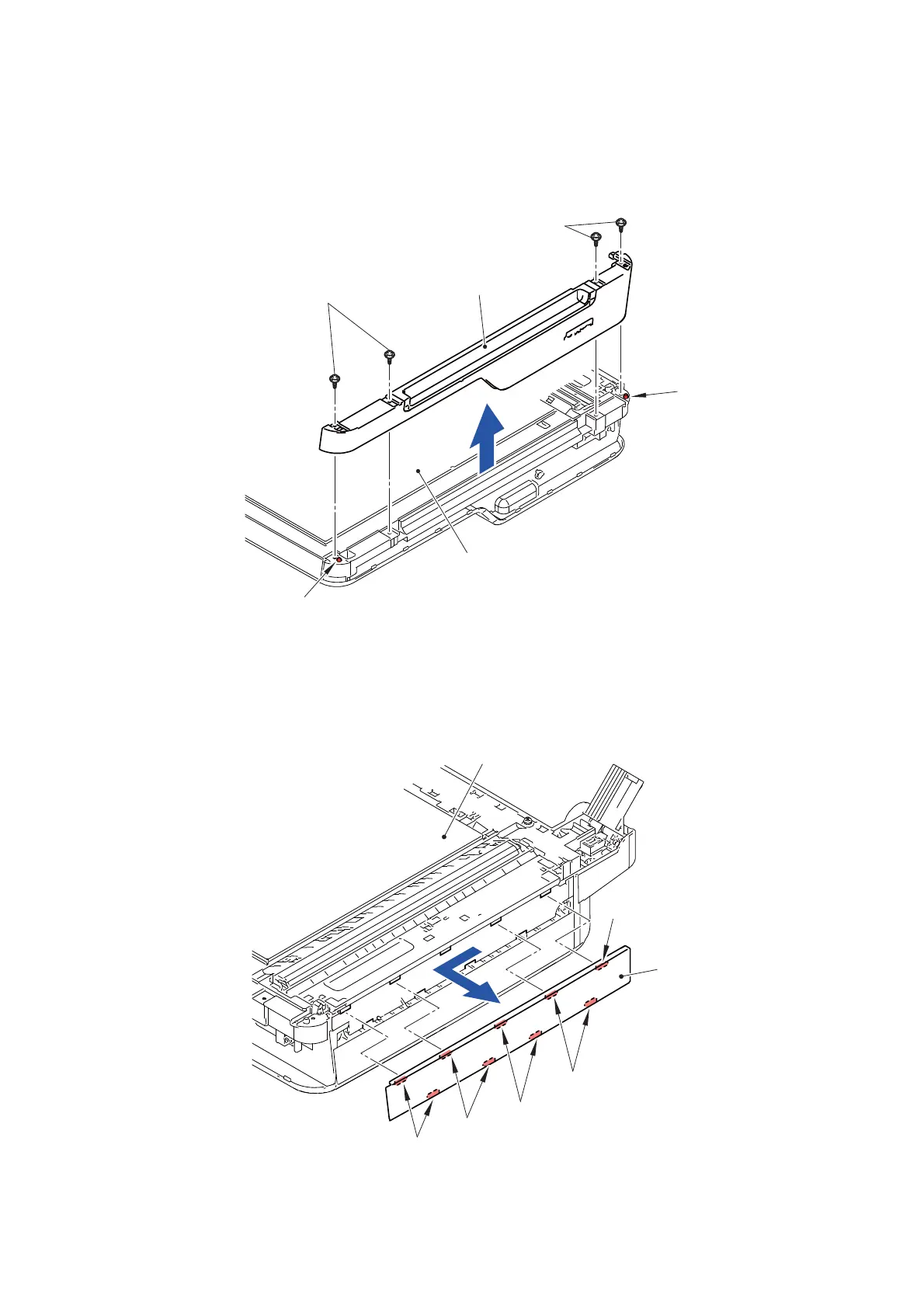

Fig. 3-48
9.12 ADF Side Cover
(1) Slide the ADF side cover in the direction of the arrow and remove the ADF unit.
Fig. 3-49
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
ADF front cover
ADF unit
Boss
Boss
ADF unit
ADF side cover
Hooks
Hooks
Hooks
Hooks
Hook
