Brother MFC-J6535DW Service Manual

3-114
Confidential
9.43 Ink Cartridge Cover Sensor
(1) Release the wiring of the Ink cartridge cover sensor.
(2) Release the Hook and remove the Ink cartridge cover sensor from the Lower
cover.

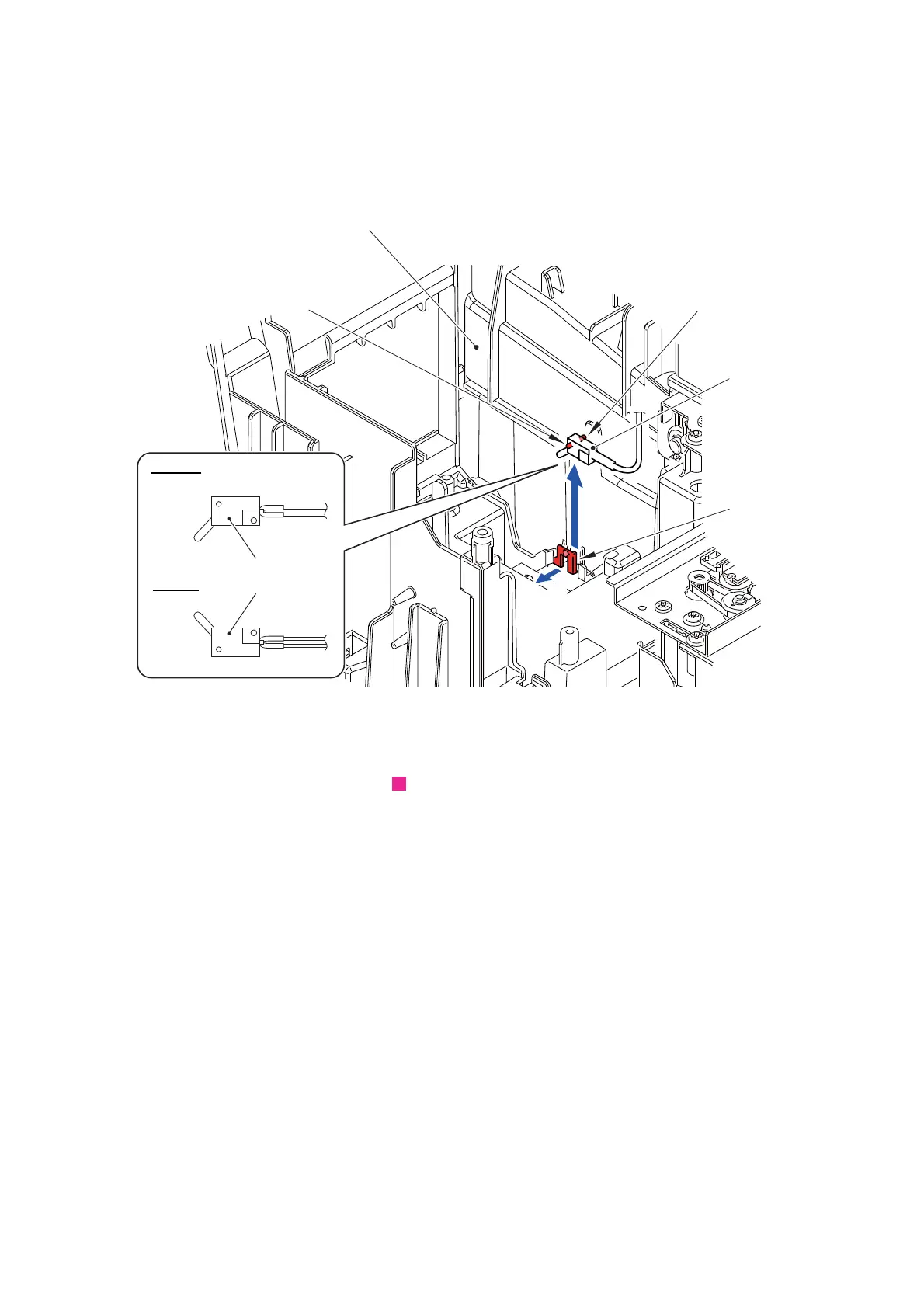

Fig. 3-141
Assembling Note: When mounting the Ink cartridge cover sensor, be careful about
the top and bottom orientation.
Routing of harnesses: See “ Ink cartridge cover sensor”.
Pin
Pin
Ink cartridge
Hook
cover sensor
Lower cover
2b
2a
Wrong
Correct
Ink cartridge
cover sensor
8
