Brother MFC-J6535DW Service Manual

3-112
Confidential
9.42 Ink Absorber Felt (For Ink Refill ASSY)

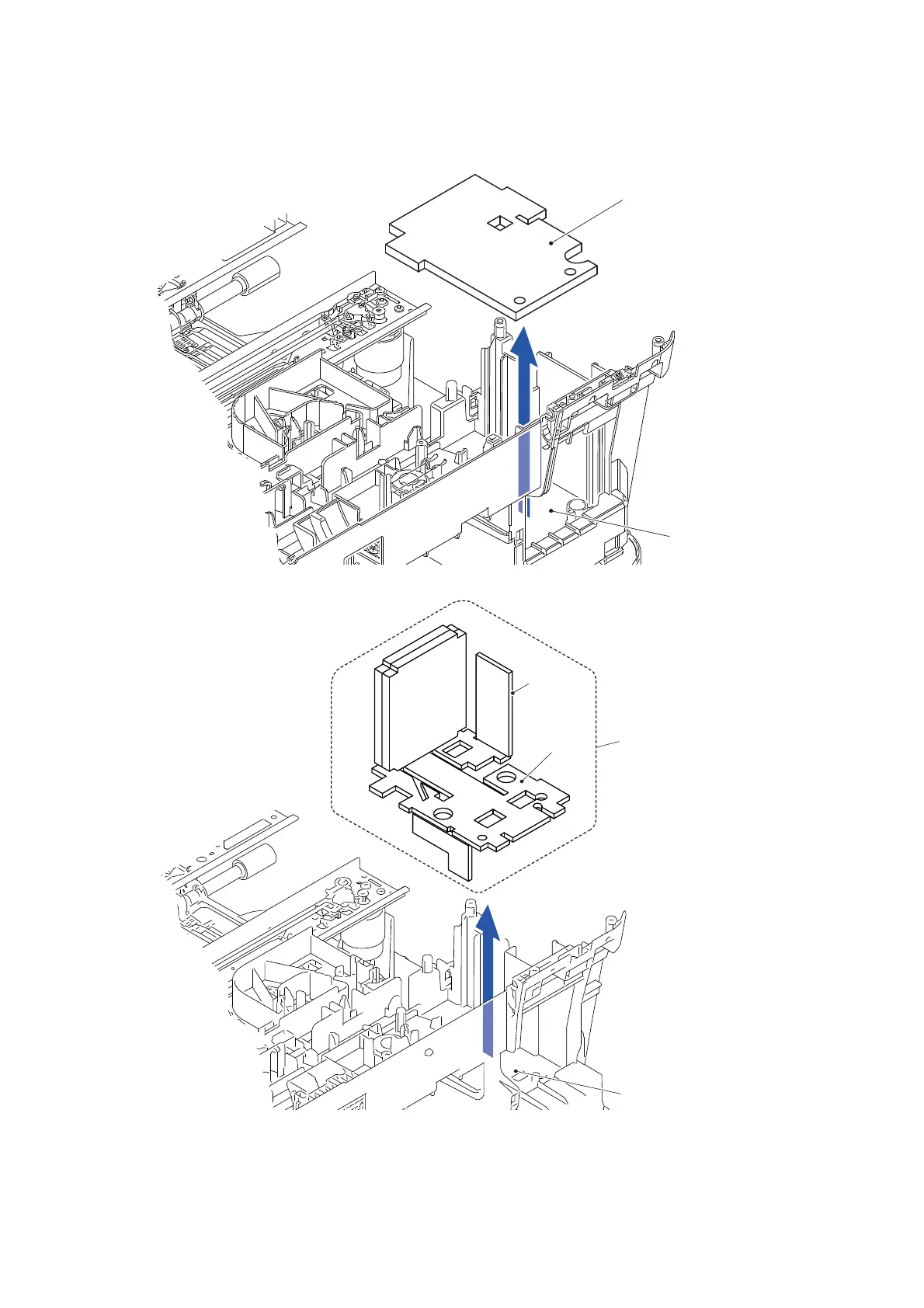

(1) Remove the Ink absorber felt (For ink refill ASSY) from the Lower cover.
Fig. 3-138
Fig. 3-139
Assembling Note: When affixing the Foam A to the Lower cover, it must contact the
top surface of the Foam B.
Ink absorber felt
Lower cover
(For ink refill ASSY)
(for Regular Ink cartridge model)
Lower cover
Ink absorber felt
(For ink refill ASSY)
(for Simple Ink cartridge model)
Foam A
Foam B
