Brother MFC-J6535DW Service Manual

3-95
Confidential
9.34 Wireless LAN PCB

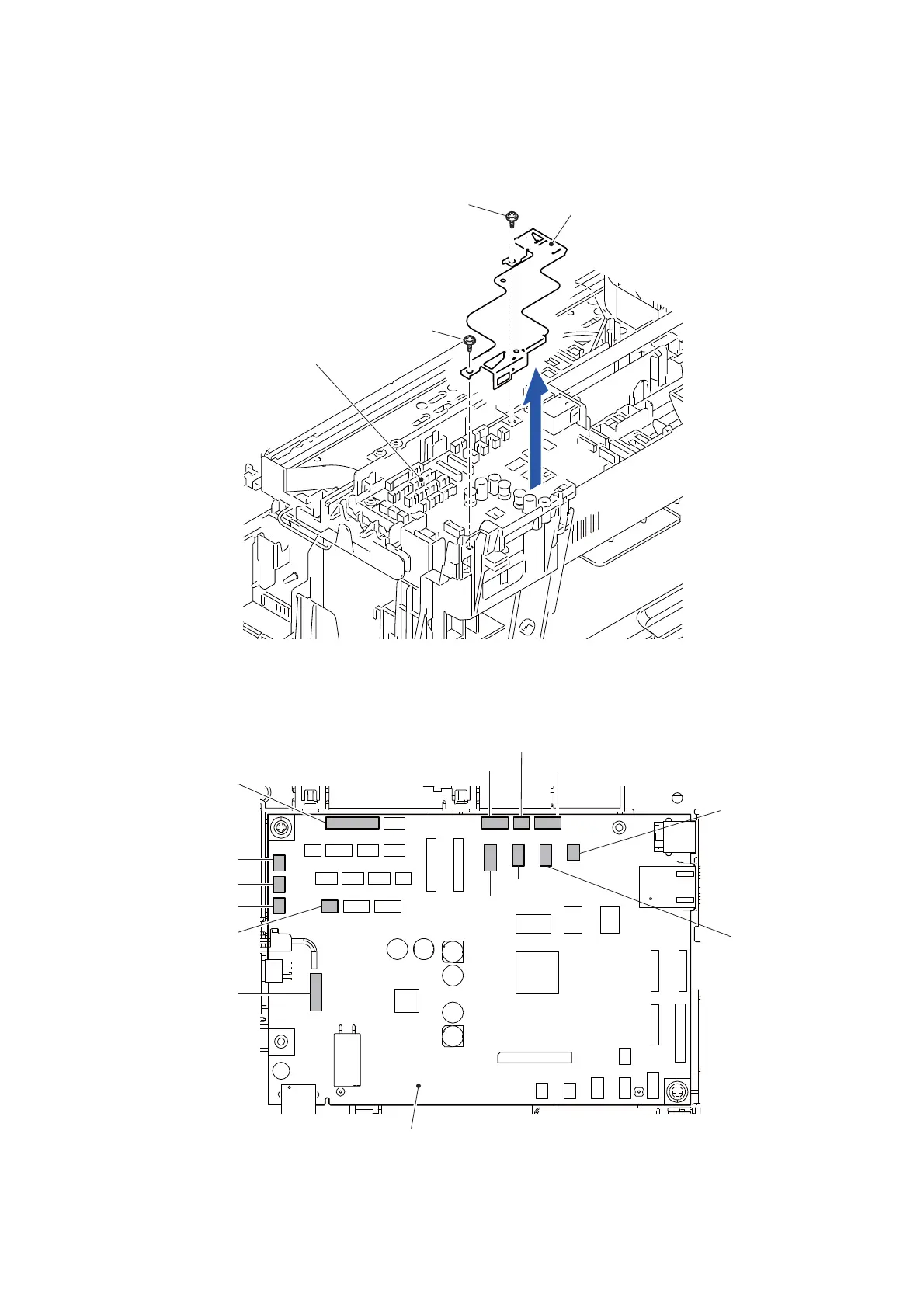

(1) Remove the two screws (SCREW CUP M3x6) and remove the Main PCB shield
from the Main PCB.
Fig. 3-107
(2) Disconnect all the Connectors of the harness attached to the Main PCB harness
hold L from the Main PCB.
Fig. 3-108
SCREW CUP M3x6
Main PCB shield
SCREW CUP M3x6
Main PCB
Carriage motor
ASF motor harness
PF motor harness
T2 paper remaining sensor harness
T2 detection sensor harness
T1 paper remaining sensor harness
T1 detection
PF encoder
Registration
Switchback
Power supply harness
Main PCB
sensor harness
harness
sensor harness
sensor
harness
sensor harness
3rd tray relay harness
3rd tray paper feed
motor harness
