9.8 Document Scanner Side Cover L (MFC model)

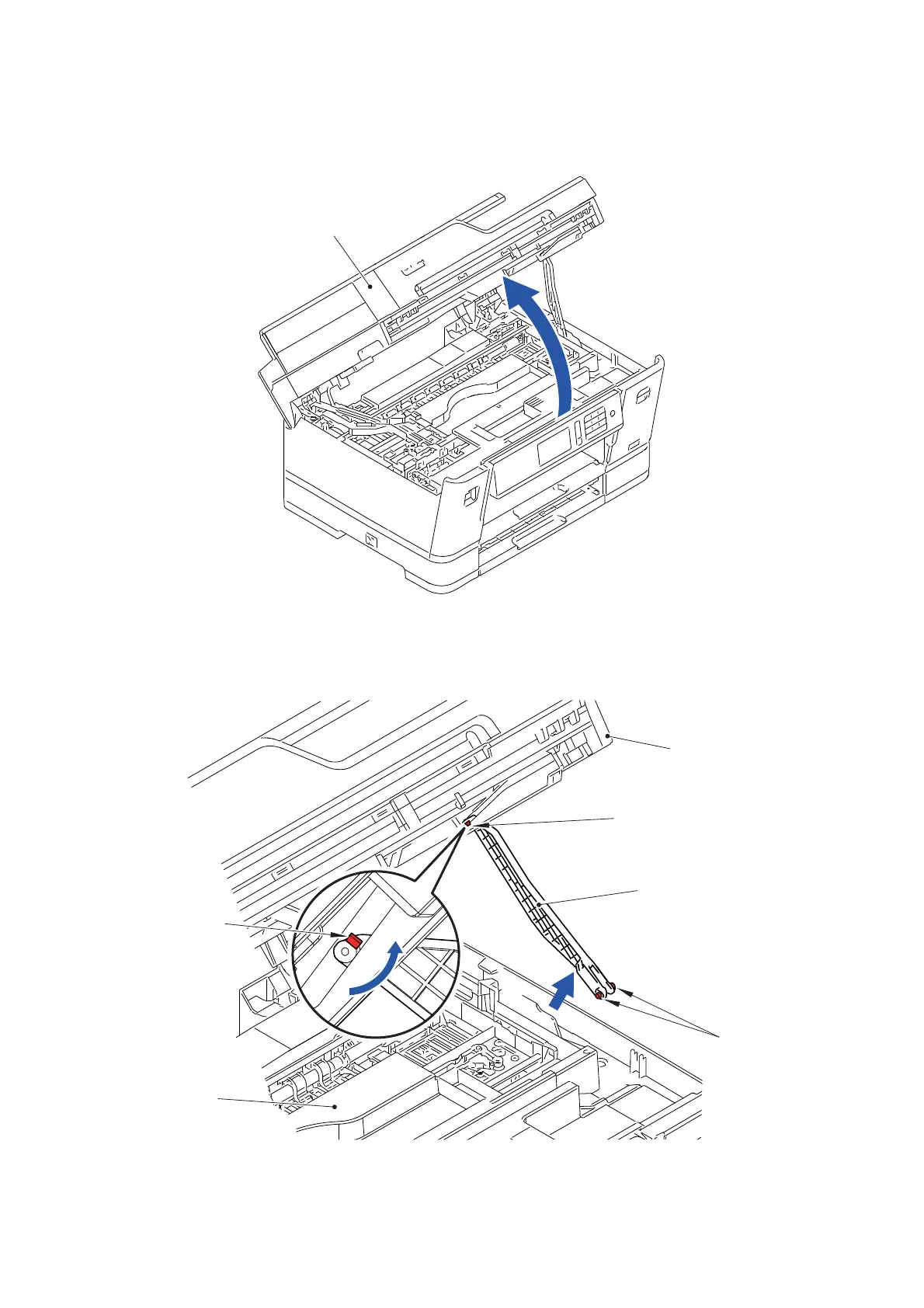

(1) Open the Document scanner unit half way.
Fig. 3-36
(2) Release the two Hooks of the FB stopper from the Upper cover.
(3) Release the Hook and remove the FB stopper from the Document scanner unit.
Fig. 3-37
Document scanner unit
Document scanner unit
Hook
FB stopper
Hooks
Upper cover
Hook
