3-146
Confidential
9.62 T1 Base Pad / T2 Base Pad / T3 Base Pad

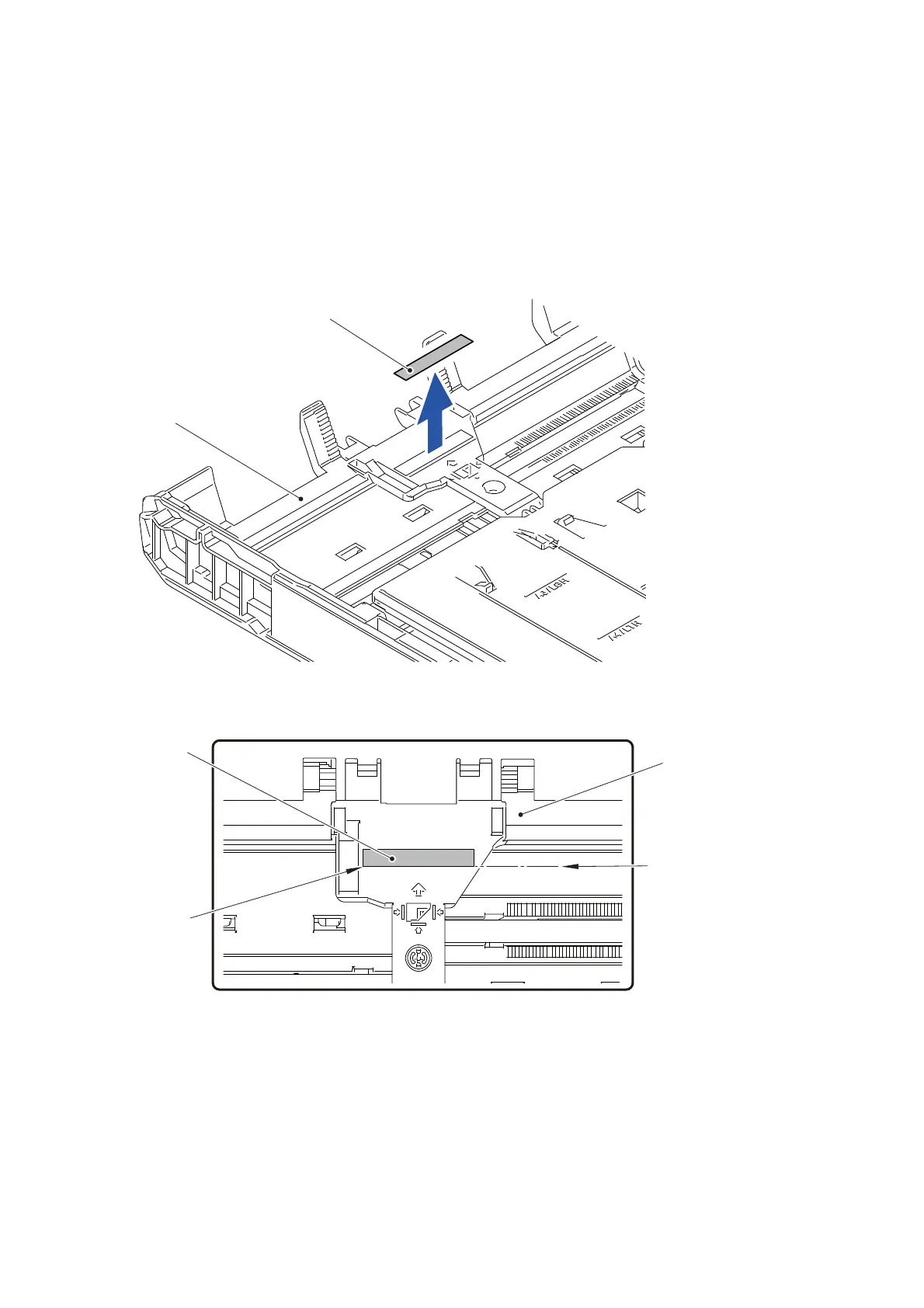

(1) Peel off the T1 base pad from the Paper tray ASSY #1.
Note: Once the T1 base pad is peeled off, it cannot be used again so that the pad
needs to be replaced with a new one.
(2) With the same procedure, peel off the T2/T3 base pad from the Paper tray ASSY
#2/#3.
Fig. 3-198
Assembling Note: When attaching a new T1 base pad to the Paper tray ASSY #1,
align the front edge of the pad with that of the Depressed section on
the Paper tray ASSY #1 and center the pad widthways as shown
above.
Paper tray ASSY #1
T1 base pad
Align the edge of the
Depressed
T1 base pad
Paper tray ASSY #1
section
T1 base pad with the front
edge of the depressed
section at the bottom of
the Paper tray (this line).
