3-121
Confidential

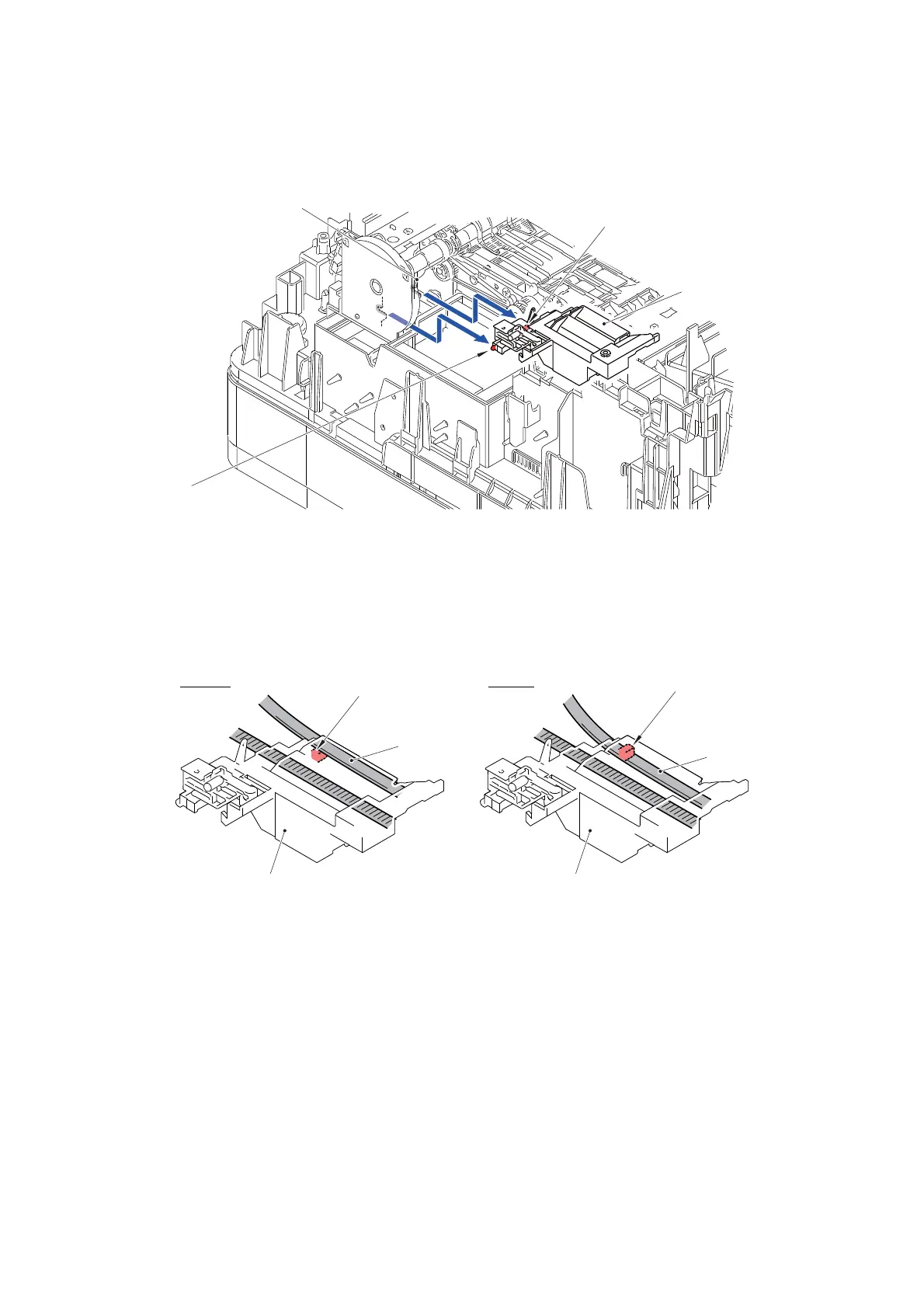

9.48 Flushing Base
(1) Remove the Flushing base from the PF motor frame.
Fig. 3-153
Assembling Note: Assemble not to put the section “A” of the Flushing base over the
Switchback roller belt.
Fig. 3-154
Boss
Boss
Flushing base
PF motor frame
“A”
Flushing base
Flushing base
“A”
WrongCorrect
Switchback
Switchback
roller belt
roller belt
