3-53
Confidential
(6) Lift and remove the Top cover ASSY from the Main body.

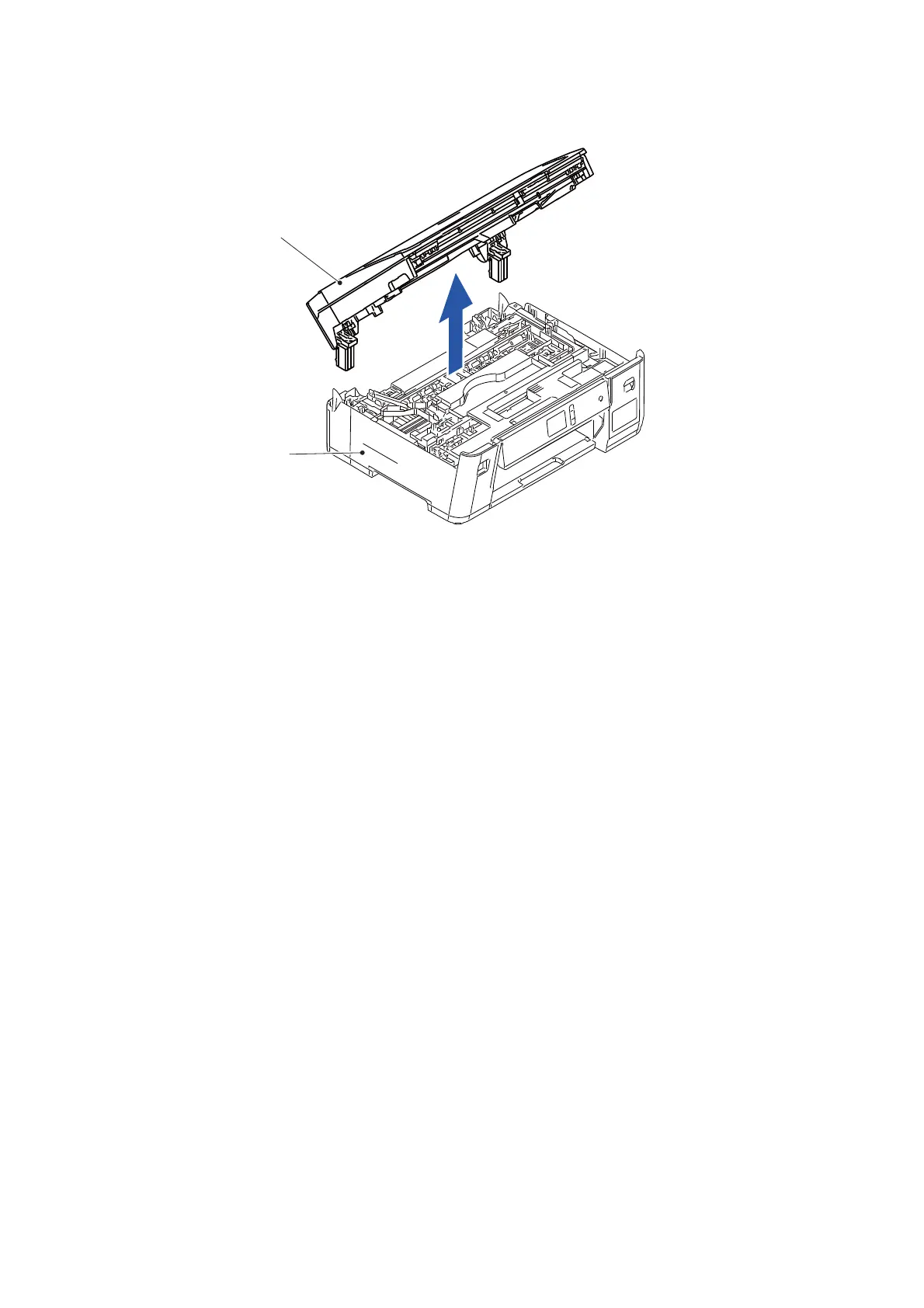

Fig. 3-35
(7) Remove the three screws (TAPTITE BIND B M4x12) each from the left and right
FB hinges to remove them from the Top cover ASSY.
Note: After removing the Top cover ASSY, go to “9.24. Front Cover L” .
