Brother MFC-J6535DW Service Manual

3-52
Confidential

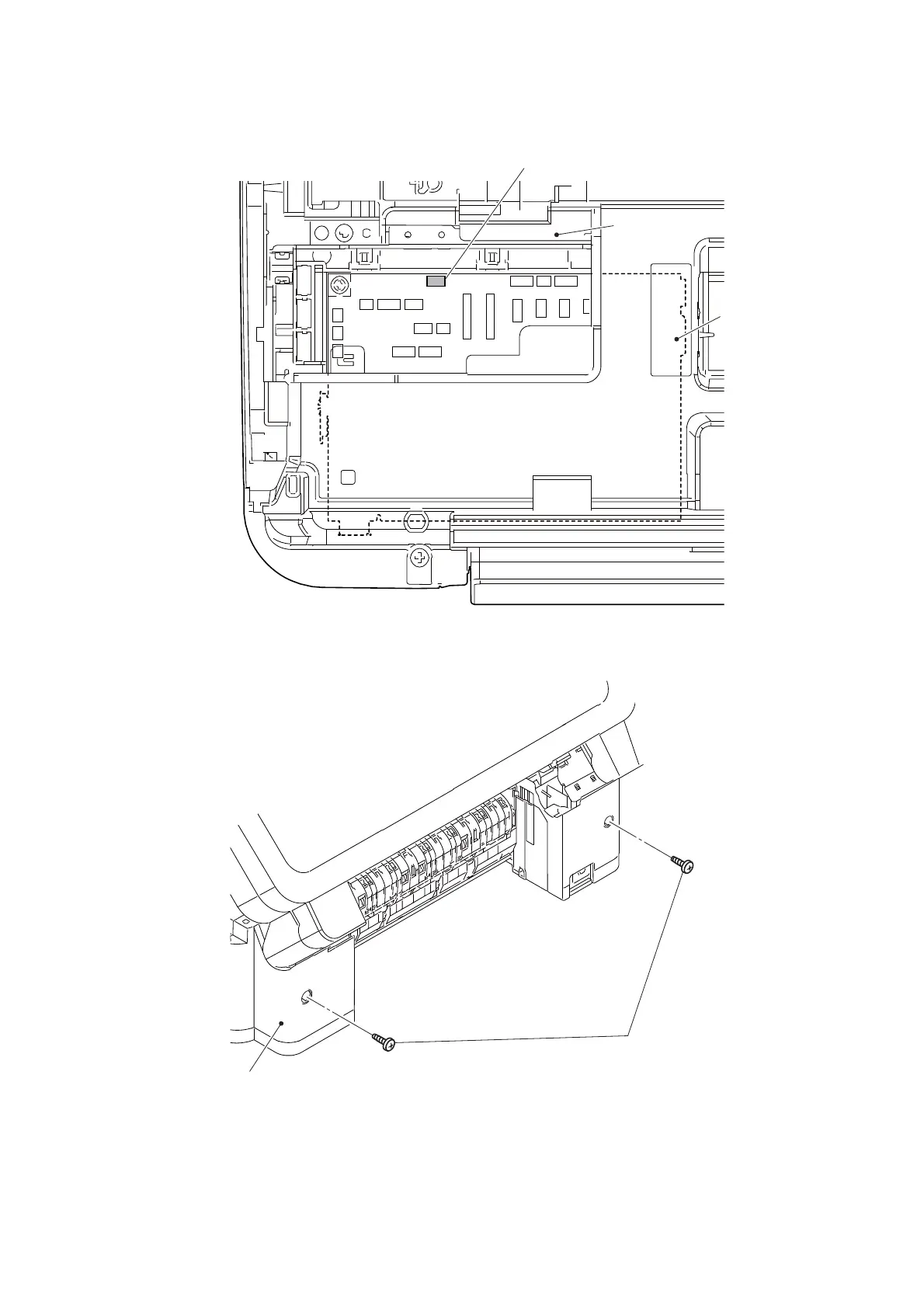

(4) Disconnect the Connector from the Main PCB.
Fig. 3-33
(5) Remove the two screws (TAPTITE BIND B M4x12) from the Main body.
Fig. 3-34
Main PCB
Main PCB frame
MP paper detection sensor harness
Main body
TAPTITE BIND B M4x12
