Brother MFC-J6535DW Service Manual

3-100
Confidential
(3) Remove the two screws (TAPTITE CUP B M3x10) and remove the Ink ABS upper
box ASSY from the Lower cover.

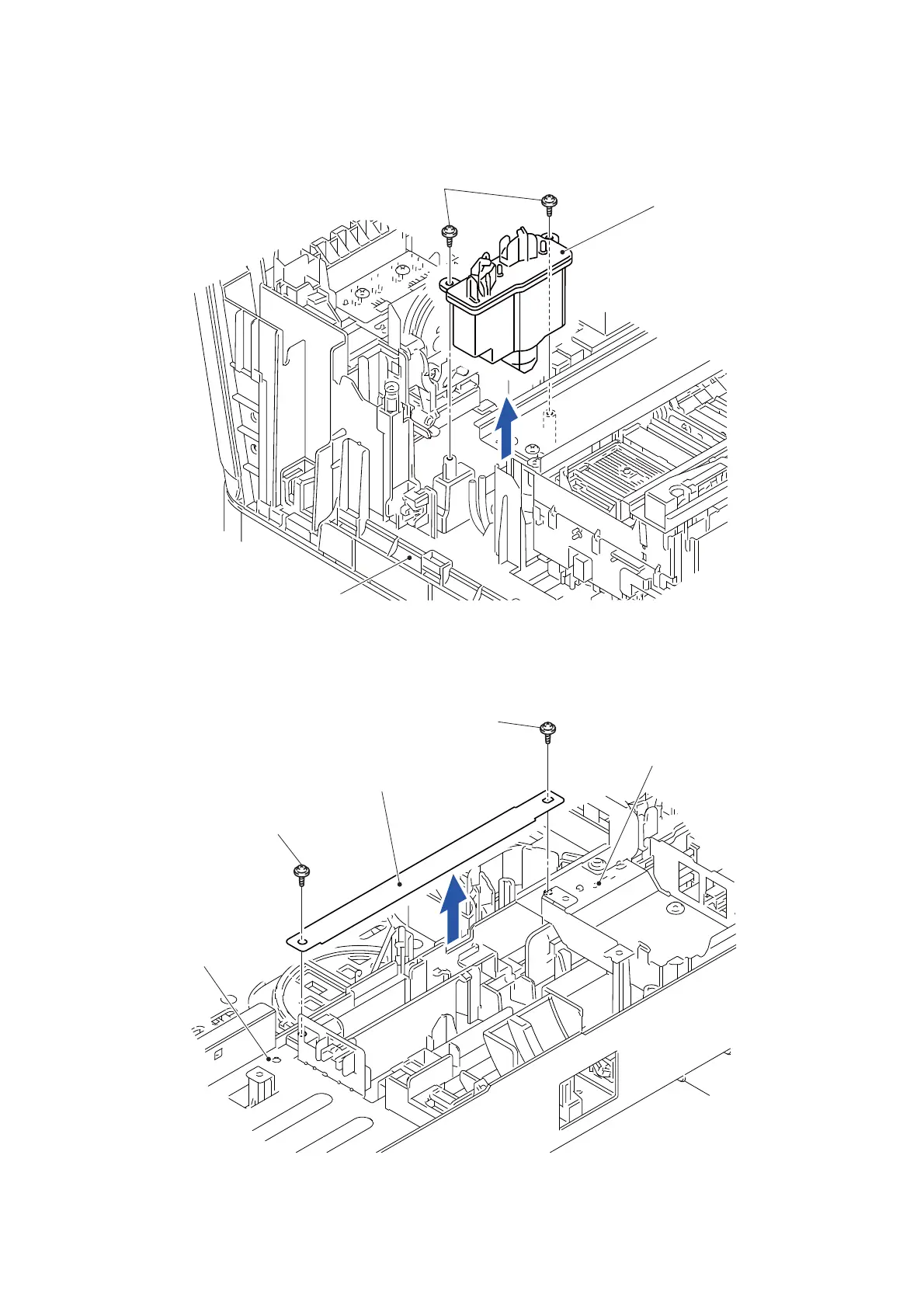

Fig. 3-117
(4) Remove the two screws (SCREW CUP M3x6) and remove the Main PCB earth
frame from the Main PCB frame and Modem PCB frame.
Fig. 3-118
Ink ABS upper box ASSY
Lower cover
TAPTITE CUP B M3x10
SCREW CUP M3x6
Main PCB earth frame
Modem PCB frame
Main PCB frame
SCREW CUP M3x6
