Brother MFC-J6535DW Service Manual

3-101
Confidential

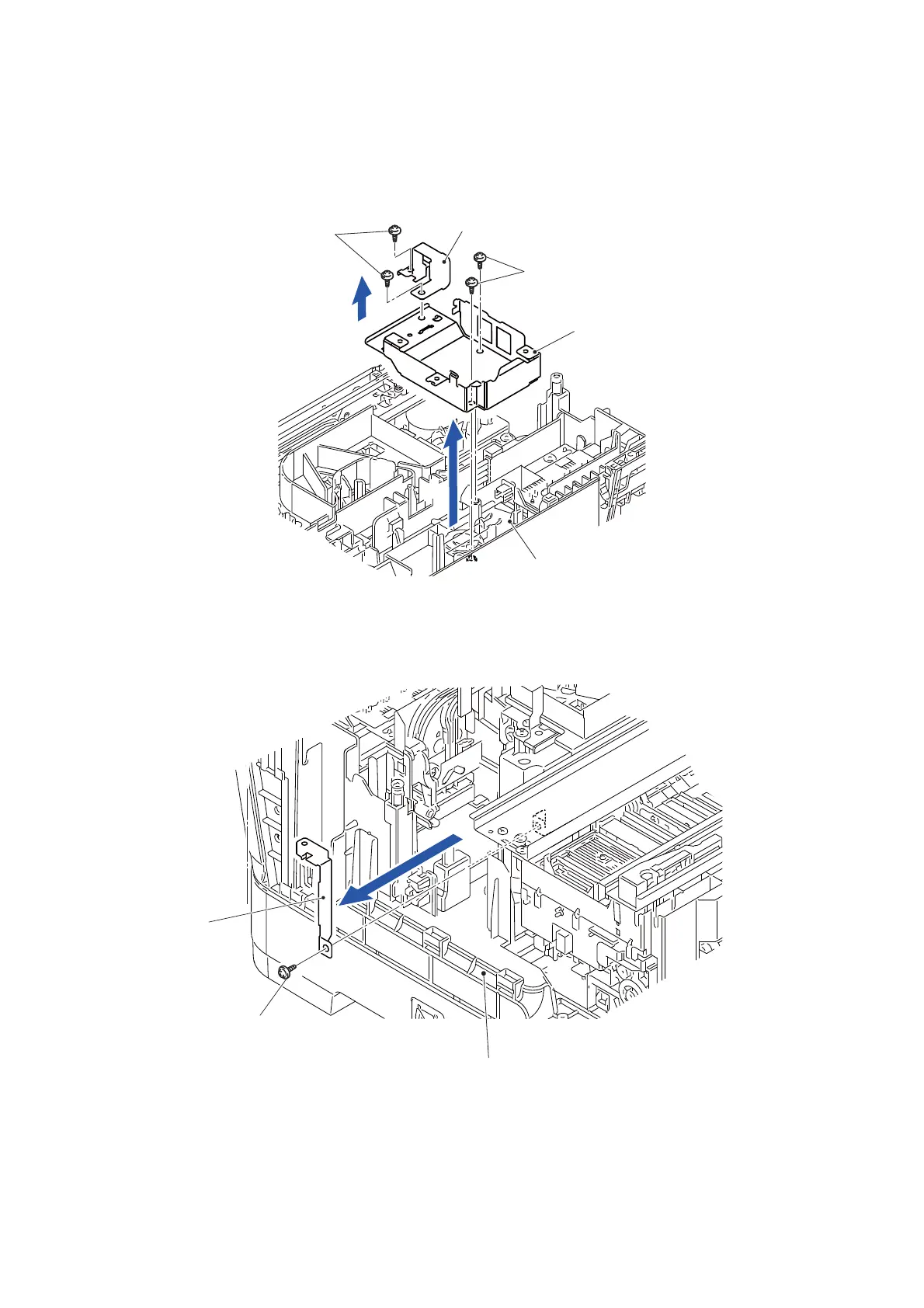

(5) Remove the two screws (SCREW CUP M3x6) and remove the Main PCB earth
frame R from the Modem PCB frame.
(6) Remove the two screws (TAPTITE CUP B M3x10) and remove the Modem PCB
frame from the Lower cover.
Fig. 3-119
(7) Remove the screw (SCREW CUP M3x6) and remove the Main PCB earth frame
R2 from the Lower cover.
Fig. 3-120
TAPTITE CUP B M3x10
SCREW CUP M3x6
Modem PCB frame
Lower cover
Main PCB earth frame R
6
5
Main PCB earth
Lower cover
frame R2
SCREW CUP M3x6
