3-125
Confidential

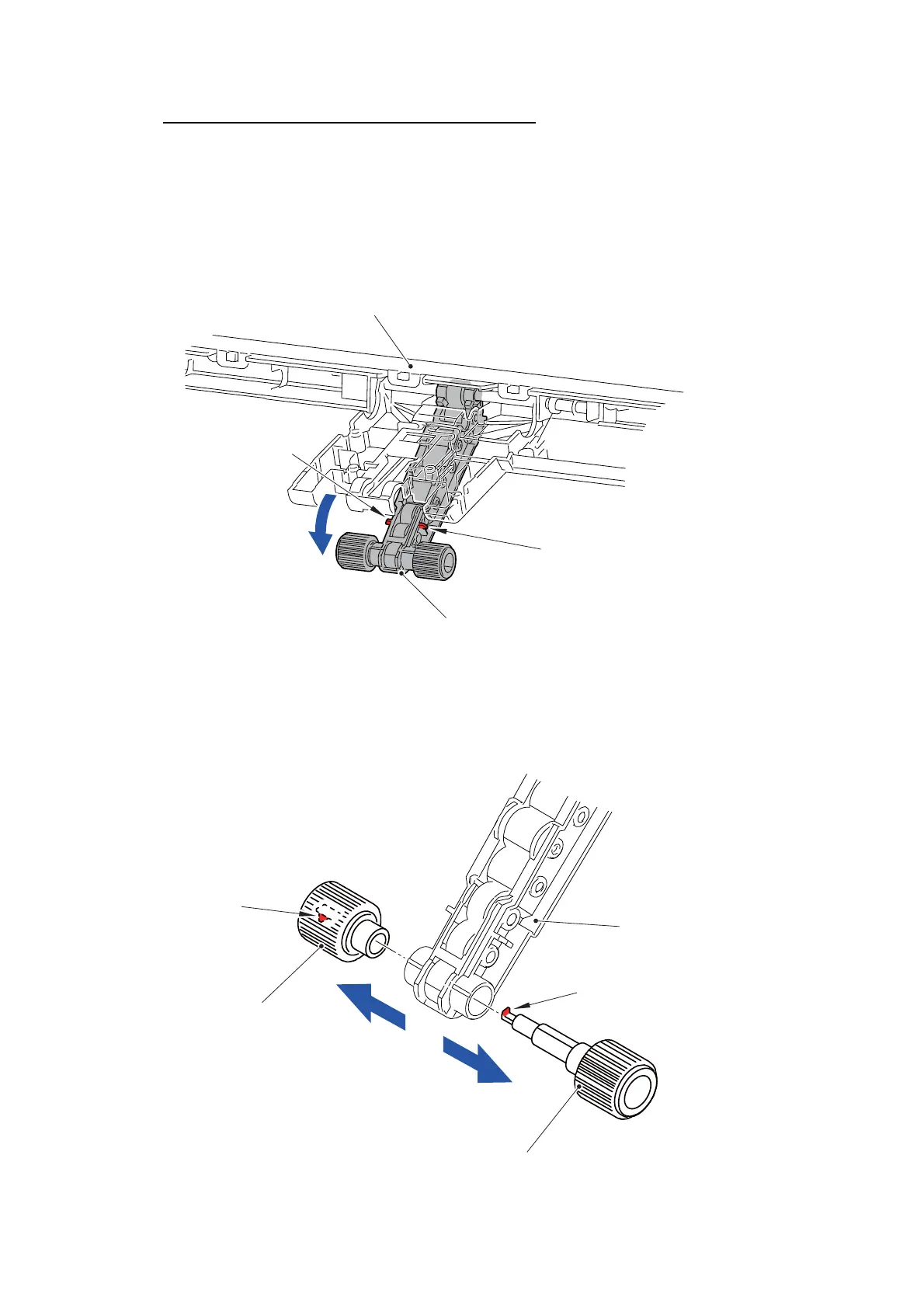

How to remove T2 paper pull-in roller L/R only
For the products before design change was made, the Paper pull-in roller holder
cannot be pushed down sufficiently in step (1).
For the products after design change was made, the T2 paper pull-in roller L/R only
can be removed using the following procedure without the need to remove the LT
frame ASSY.
(1) Release the two Hooks and push down the Paper pull-in roller holder.
Fig. 3-159
(2) Open the Latch to the outer side and remove the T2 paper pull-in roller L/R from
the Paper pull-in roller holder.
Assembling Note: When assembling the T2 paper pull-in roller L/R, make sure to
engage the Hook with the Latch.
Fig. 3-160
Paper pull-in roller holder
Hook
Hook
LT frame ASSY
Paper pull-in roller holder
T2 paper pull-in roller L
Latch
Hook
T2 paper pull-in roller R
To Next Page
