3-85
Confidential

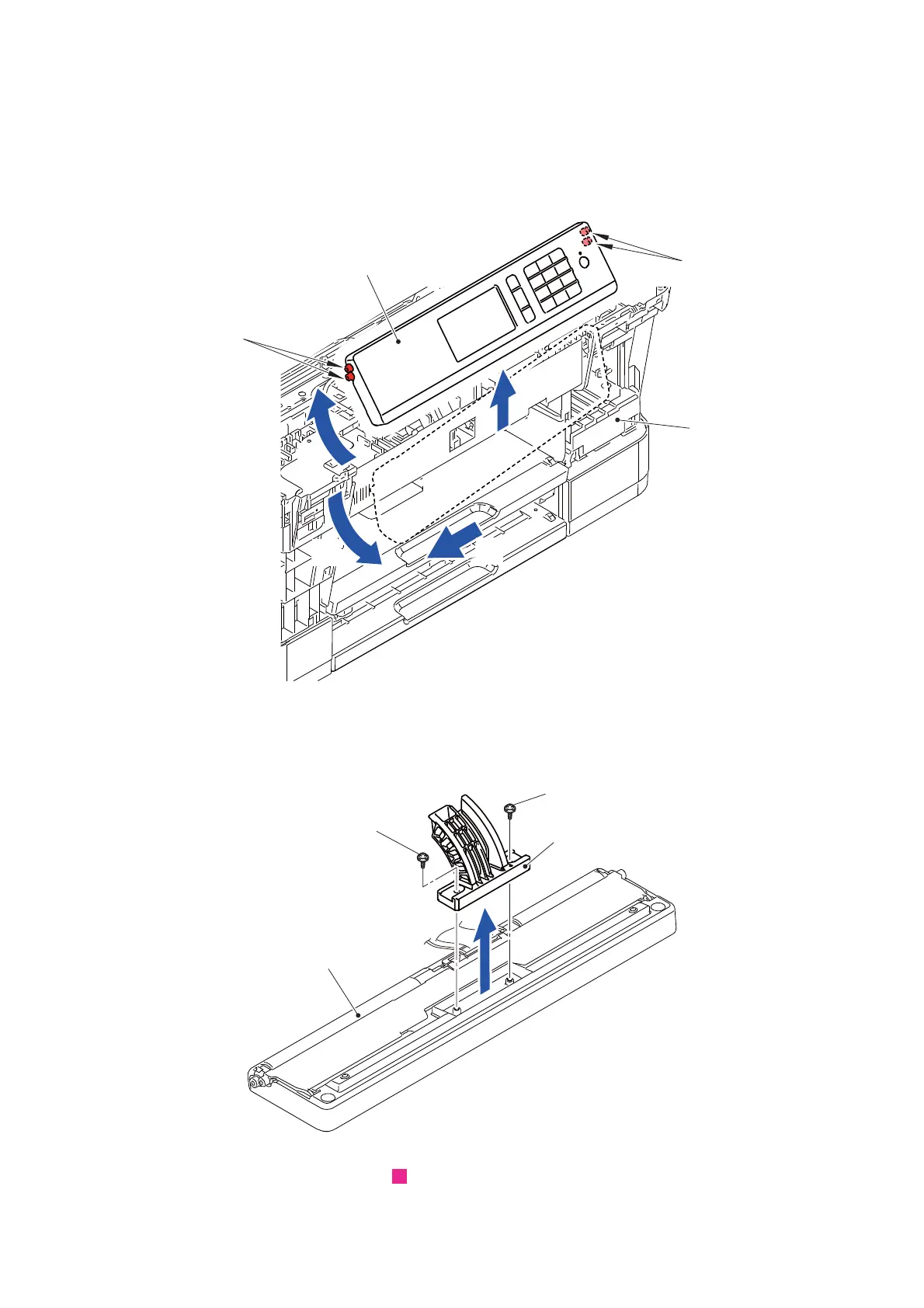

(7) Release the two Pins on the left-side of the Control panel ASSY in the direction of
the arrow.
(8) Release the two Pins on the right-side of the Control panel ASSY from the Lower
cover.
Fig. 3-90
(9) Remove the two screws (TAPTITE CUP B M3x8) and remove the Tilt hook from
the Control panel ASSY.
Fig. 3-91
Routing of harnesses: See “ Control panel ASSY”.
Pins
Pins
Control panel ASSY
Lower cover
8b
7b
8a
7a
TAPTITE CUP B M3x8
Control panel ASSY
Tilt hook
TAPTITE CUP B M3x8
14
