Brother MFC-J6535DW Service Manual

3-9
Confidential

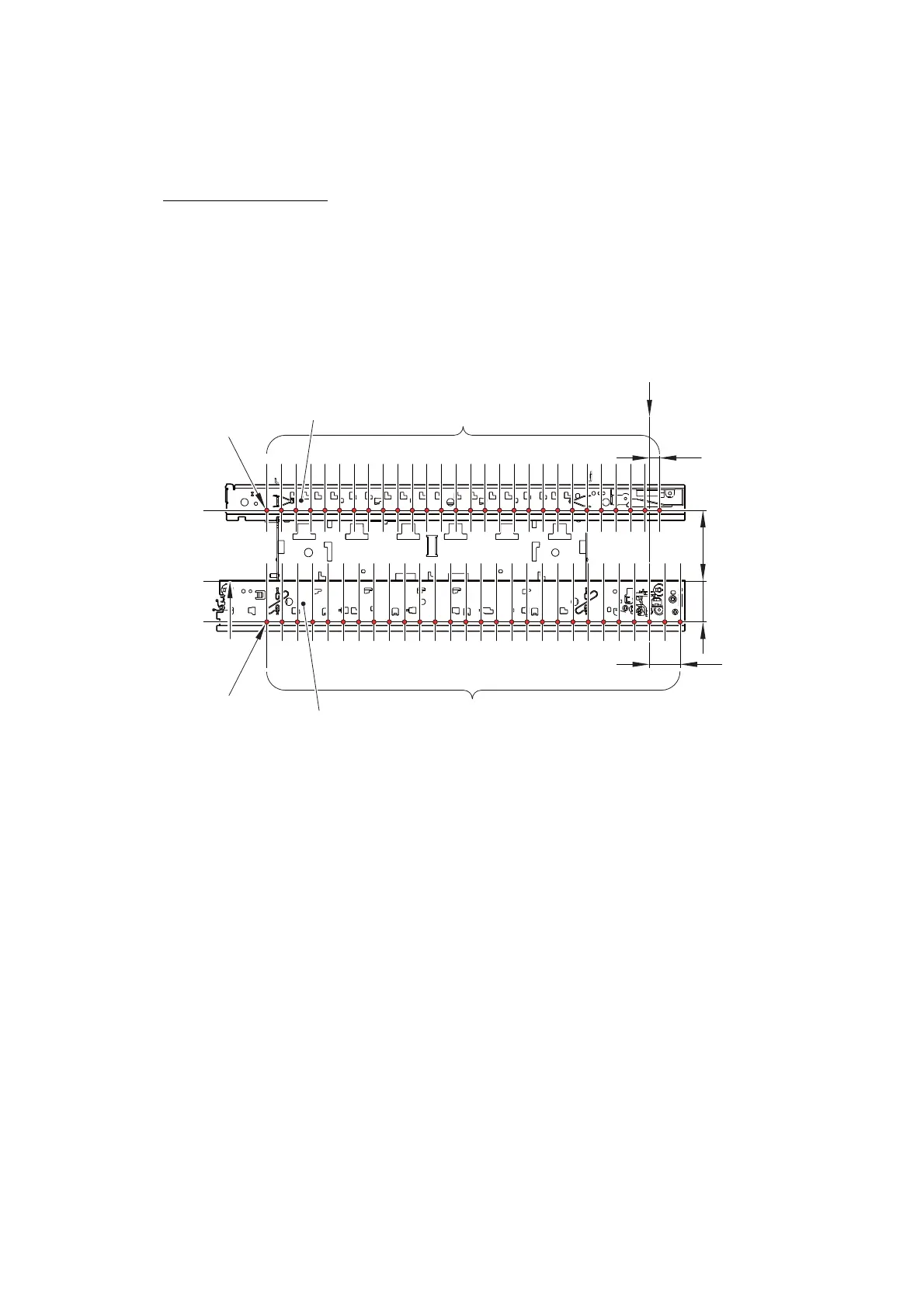

■ CR guide rail and CR frame (top face)
Apply a 2 mm diameter ball of grease (FLOIL BG-14NSU) to each of the 56 lubrication points
below.
Lubrication procedure
(1) Move the head/carriage unit to the left end of its travel.
(2) Before applying grease, wipe dust or dirt off the lubrication area with an alcohol soaked
cloth.
(3) Move the head/carriage unit from the left to the right ends of its travel to spread the applied
grease on the CR guide rail and CR frame.
Apply grease here.
Apply grease here.
CR guide rail
CR frame
(mm)
76.05±0.542.65±0.5
30.5
13.4
Home position of
head/carriage unit
Reference Y
15.49 interval x 27
16.66 interval x 27
