Brother MFC-J6535DW Service Manual

3-15
Confidential
■ < India model only > Paper tray ASSY #1
■ < India model only > Output paper tray
Lubrication procedure

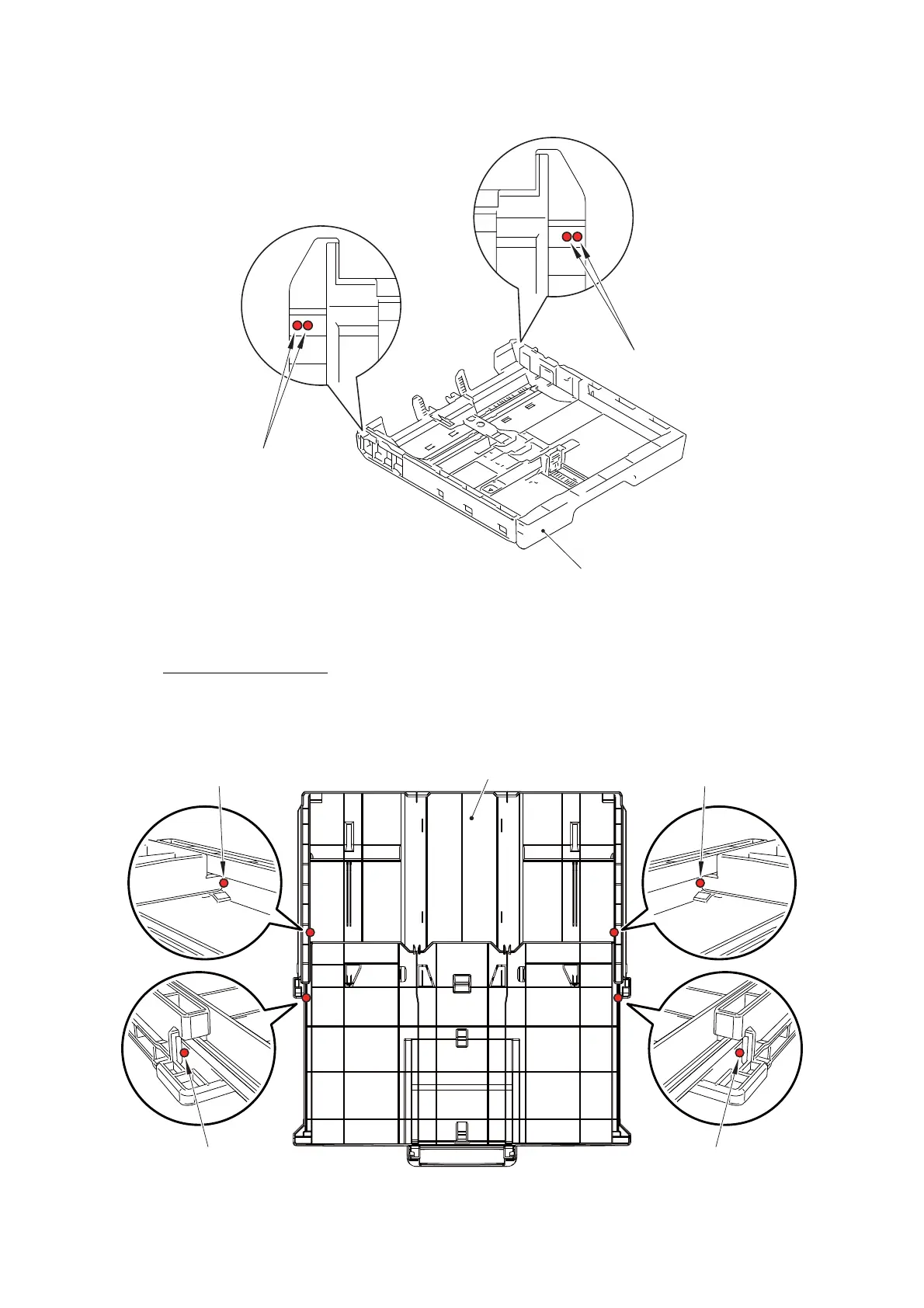

(1) Completely open the tray and then turn it over. Apply grease to the four locations shown in
the figure below.
(2) Open and close the tray one time to spread grease.
Apply grease here.
Apply grease here.
Paper tray ASSY #1
Apply grease here.
Apply grease here.
Apply grease here.
Apply grease here.
Output paper tray
