3-42
Confidential

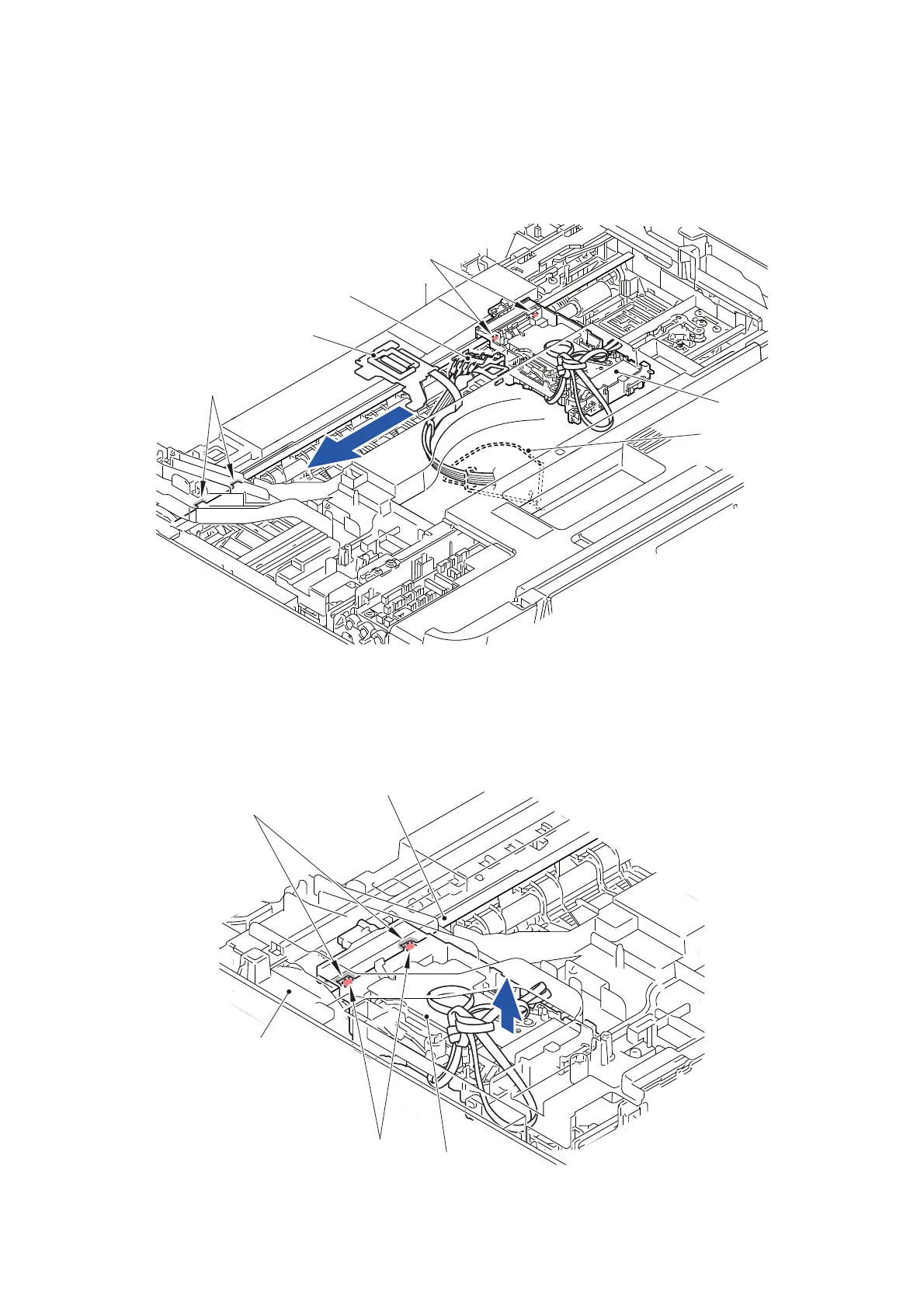

(21)Slide the Head/carriage unit in the arrow direction (until the two hooks of the Head/
carriage unit are aligned with the cutouts of the CR guide rail).
Note: Sliding the Flat cable of the Carriage PCB ASSY and Ink supply tube to the left
together with the Head/carriage unit may prevent the Head/carriage unit from
getting caught with the Support wire.
Fig. 3-15
(22)Lift the Head/carriage unit from the cutouts of the CR guide rail as high as it can be
removed.
Note: The Head/carriage unit cannot be lifted too much because there is the Upper
cover.
Fig. 3-16
Head/carriage
Support wire
Hooks
Ink supply tube
Carriage PCB ASSY
unit
Cutouts
Head/carriage unit
Hooks
CR guide rail
Upper cover
Cutouts
To Next Page
