3-44
Confidential

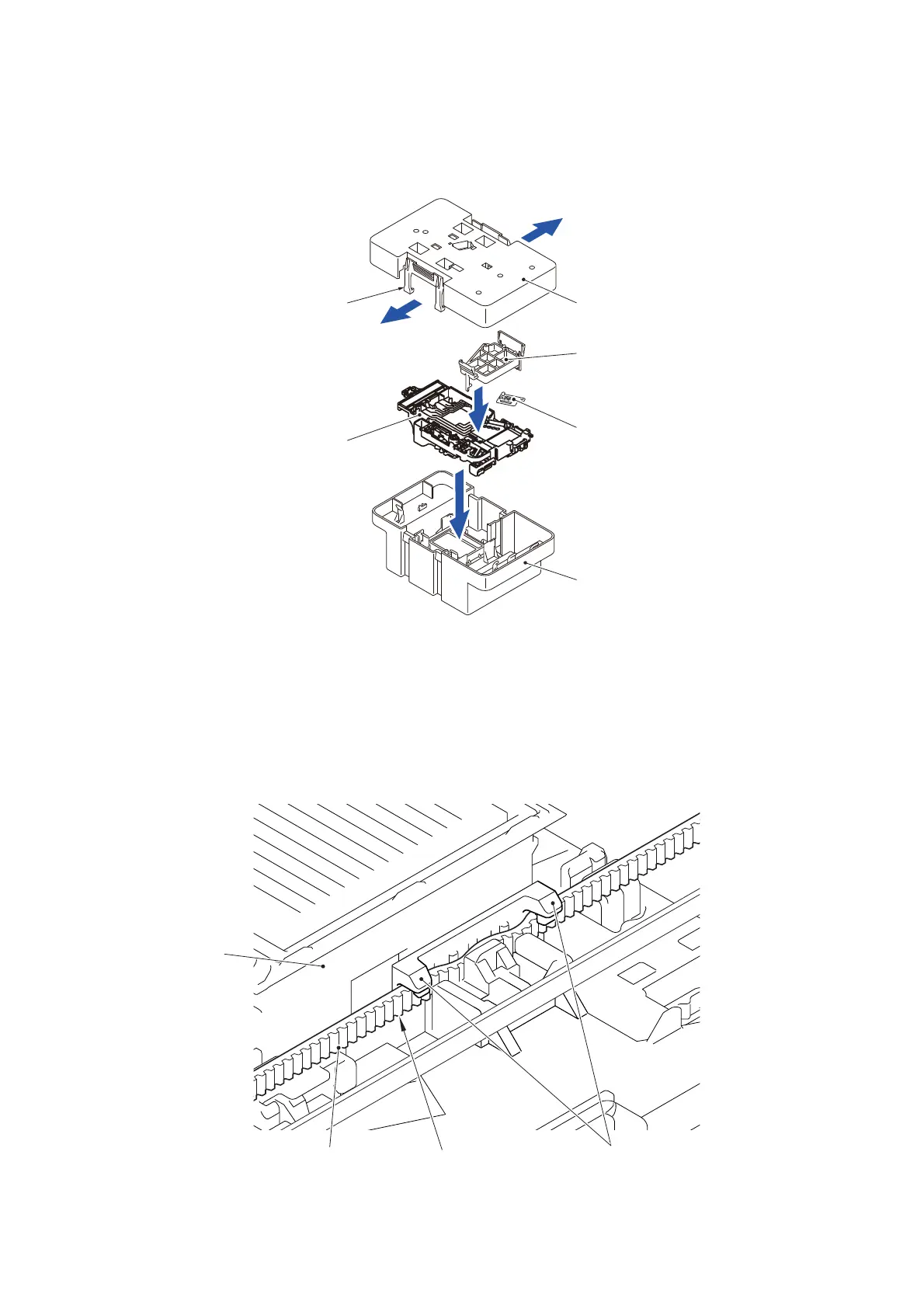

Note: When storing the removed Head/carriage unit for a long period, store the unit in
a Head casing as shown below. Leaving it out of the casing causes the head
nozzles and ink supply ports to dry up so that the Head/carriage unit can no
longer provide the original performance.
Fig. 3-19
Assembling Note: Mount the Head/carriage unit, using the following steps.
1) When mounting a new Head/carriage unit, apply lubricant to the unit, as
specified in Section 5 "LUBRICATION" of this chapter.
2) When mounting the CR timing belt, insert it into the Head/carriage unit so that
the toothed side faces inwards as shown below and make sure that the upper
and lower edges of the belt are fitted in the Latches.
Fig. 3-20
Head/carriage unit
Head casing （lower）
Joint cap
Head casing （upper）
Head joint rubber
Latch
Head/
CR timing belt
carriage unit
Latches
Belt gear
To Next Page
